Product Category: Upright

Upright

METTECH » Products Page » Categories » Microscopes » Metallurgical » Upright

FU-1000/PT#2 Rear Mounting Bracket

Replacement rear mounting bracket for FU-1000 (Fits onto a 20mm mounting post with locking screw). Based on ML7000 metallurgical components, the FU1000 Compound Optics Focus Block can be the starting point for a custom microscope designed to fit your application or a turnkey OEM/VAR solution. The FU1000 can use standard infinity corrected metallurgical objectives into its quintuple nosepiece. This compound optics focus block can also mount on a wide variety of boom or pole stands or simply bolted onto any vertical plate accommodating the bolt pattern making it possible for it to be mounted virtually anywhere. The total focus travel is 40mm. Binocular viewing heads or trinocular viewing heads for photo and video applications are also available.

Price: $0.00

Loading Updating cart…

FU-1010 Coaxial Focus Block

Focus Block with 40mm travel, quadruple nosepiece and z-axis mounting kit for optional z-axis micrometer Mitutoyo P/N MTI543-542.

Additional DescriptionMore Details

Specifications: Package Information:
  • 4 lbs
  • 12 x 9 x 7 inches
VIEWING HEADS: Erect image binocular heads or non-erect image trinocular heads for photomicrography can be used. (Viewing heads are not included.)

EYEPIECES: Paired DIN KHW10x, FN 20 (Eyepieces are not included).

OBJECTIVES: Meiji Infinity corrected S. Plan and E.Planachromat objectives can be used. See list below. (Objectives are not included with FU1000 or FU1010)

STAND: Flat-top stage: 171mm x 140mm surface with 80mm (X) by 52mm (Y) movement, graduated with vernier readings to 0.1 mm, detachable specimen guide, drop-down right of left-handed controls.

EPI – ILLUMINATION: This focus block accepts either a fiber optic light source with light guide and vertical illuminator (MA806) or an integrated 6V 30W halogen, full Koehler vertical illuminator (MA651/100). Illuminator filters include clear blue, clear green, polarizing, and neutral density (ND8) filters in mounts. (Illumination is not included with FU1000 or FU1010)

Price: $0.00

Loading Updating cart…

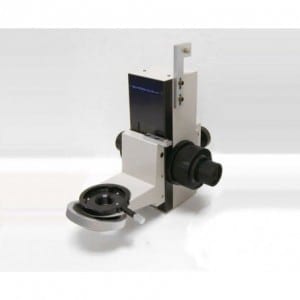

FU-1000 Coaxial Focus Block

Focus Block with 40mm travel, quintuple nosepiece and pole stand mount.

Additional DescriptionMore Details

Specifications: Package Information:
  • 4 lbs
  • 12 x 9 x 7 inches
VIEWING HEADS Erect image binocular heads or non-erect image trinocular heads for photomicrography can be used. (Viewing heads are not included.)

EYEPIECES Paired DIN KHW10x, FN 20 (Eyepieces are not included).

OBJECTIVES Meiji Infinity corrected S. Plan and E.Planachromat objectives can be used. See list below. (Objectives are not included with FU1000 or FU1010)

STAND Flat-top stage: 171mm x 140mm surface with 80mm (X) by 52mm (Y) movement, graduated with vernier readings to 0.1 mm, detachable specimen guide, drop-down right of left-handed controls.

EPI – ILLUMINATION This focus block accepts either a fiber optic light source with light guide and vertical illuminator (MA806) or an integrated 6V 30W halogen, full Koehler vertical illuminator (MA651/100). Illuminator filters include clear blue, clear green, polarizing, and neutral density (ND8) filters in mounts. (Illumination is not included with FU1000 or FU1010)

Price: $0.00

Loading Updating cart…

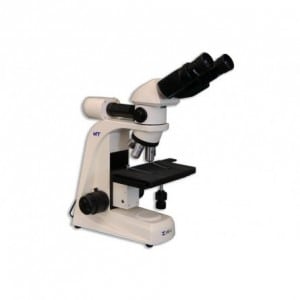

MT7000 Halogen Bino Brightfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

The MT7000 Series features include:

  • Computer Aided Design
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing head
  • 30W Vertical Koehler Illuminator with auto sensing power supply
  • Brightfield observation mode
  • Optional Ergonomic binocular viewing head available
Additional DescriptionMore Details

Specifications:
  • MT7000:Binocular Compound Metallurgical Microscope with 6V 30W Halogen Koehler Incident (Reflected) light observation and Infinity Corrected Optical System
  • MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
  • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
  • MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
  • MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
  • MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
  • MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
  • MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
  • MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
  • MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
  • MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
  • MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
  • MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
  • MA326: 6V 30W Halogen lamp (Factory Installed)
  • MA327: 3 Amp Fuse for Halogen illuminator (Factory Installed)
  • MA809/10: Removable AC electric cord with plug for 115V Models
  • MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
  • MA711: Dust cover for all MT7000 Series microscope
  • Manual: Meiji Techno America MT7000 Manual
  • Warranty: Limited Lifetime Warranty Card

Price: $0.00

Loading Updating cart…

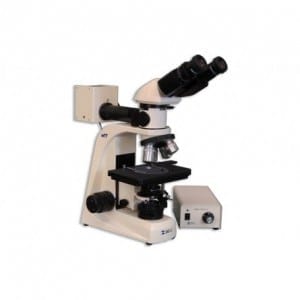

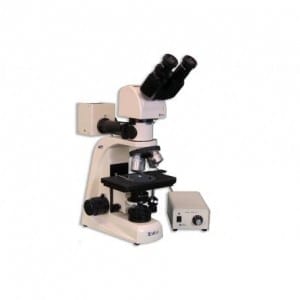

MT8520EL LED Ergo Bino Incident/Transmitted Light BF/DF Metallurgical Microscope

MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view. Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees. Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp or LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen or LED and simple polarization with quintuple nosepiece and auto voltage sensing power supply 110-240V.

Additional DescriptionMore Details

Specifications:
  • MT8520EL: Ergonomic LED Binocular Metallurgical Brightfield /Darkfield Compound Microscope with eyepieces adjustable vertically from 10°to 50° degrees. Incident LED (Reflected) light BF/DF and Transmitted light LED BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical LED Köhler illuminator , with infinity tube lens, focal length 200mm, LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler LED illumination and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V
  • MA957: Ergonomic tilting binocular head – eyepiece adjustable vertically from 10°to 50° degrees, Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube)
  • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
  • MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
  • MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
  • MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
  • MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
  • MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
  • MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
  • MA928/LED: Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (Without transformer)
  • MA928/05L: Automatic voltage sensing power supply for MA928/L provided in separate case (Input 100V~240V, Output 12V 50W)
  • MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
  • Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
  • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA910/05: Substage condenser with iris diaphragm, dovetail mount
  • LED/SP-1: Bulb 3W LED, 5500K color temperature (Incident and Transmitted LED Bulb)(Factory installed)
  • MA929: Fuse 0.5A for MT8500 LED Illuminator (Factory Installed)
  • MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
  • MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
  • MA709: Dust cover for all MT8500 Series models
  • Manual: Meiji Techno America MT8500 Manual
  • Warranty: Limited Lifetime Warranty Card

Price: $0.00

Loading Updating cart…

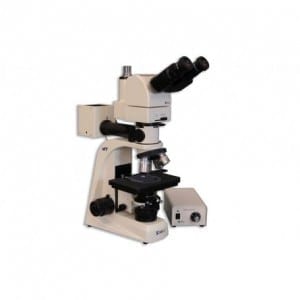

MT8530EH Halogen Ergo Trino Incident/Transmitted Light BF/DF Metallurgical Microscope

MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view. Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees. Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp or LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen or LED and simple polarization with quintuple nosepiece and auto voltage sensing power supply 110-240V.

Additional DescriptionMore Details

Specifications:
  • MT8530H: Trinocular Metallurgical Brightfield /Darkfield Compound Microscope with Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator , with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V. Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel.
  • MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees
  • MA958: Photo/video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used
  • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
  • MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
  • MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
  • MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
  • MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
  • MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
  • MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
  • MA928/05: Electronic external transformer with automatic voltage sensing capability for MA928 in separate case (Input 100V~240V, Output 12V 50W) (Included on Halogen models only)
  • MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
  • Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
  • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA910/05: Substage condenser with iris diaphragm, dovetail mount
  • MA275/05: Bulb 12V 50W Halogen lamp (Incident light)(Factory Installed)
  • MA326: Bulb 6V 30W Halogen lamp (Transmitted light)(Factory Installed)
  • MA327: Fuse 3A for transmitted light Halogen Illuminator(Factory Installed)
  • MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
  • MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
  • MA709: Dust cover for all MT8500 Series models
  • Manual: Meiji Techno America MT8500 Manual
  • Warranty: Limited Lifetime Warranty Card

Price: $0.00

Loading Updating cart…

MT8520EH Halogen Ergo Bino Incident/Transmitted Light BF/DF Metallurgical Microscope

MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view. Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees. Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp or LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen or LED and simple polarization with quintuple nosepiece and auto voltage sensing power supply 110-240V.

Additional DescriptionMore Details

Specifications:
  • MT8520EH: Ergonomic Binocular Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees. Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator , with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V. Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel
  • MA957: Ergonomic tilting binocular head – Adjustable vertically from 10°to 50°degrees. Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (Included in Model MT8520EH , MT8530EH, MT8520EL, MT8530EL)
  • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
  • MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
  • MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
  • MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
  • MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
  • MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
  • MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
  • MA928/05: Electronic external transformer with automatic voltage sensing capability for MA928 in separate case (Input 100V~240V, Output 12V 50W) (Included on Halogen models only)
  • MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
  • Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
  • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA910/05: Substage condenser with iris diaphragm, dovetail mount
  • MA275/05: Bulb 12V 50W Halogen lamp (Incident light)(Factory Installed)
  • MA326: Bulb 6V 30W Halogen lamp (Transmitted light)(Factory Installed)
  • MA327: Fuse 3A for transmitted light Halogen Illuminator(Factory Installed)
  • MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
  • MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
  • MA709: Dust cover for all MT8500 Series models
  • Manual: Meiji Techno America MT8500 Manual
  • Warranty: Limited Lifetime Warranty Card

Price: $0.00

Loading Updating cart…

MT8530L LED Trino Incident/Transmitted Light BF/DF Metallurgical Microscope

MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view. Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees. Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp or LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen or LED and simple polarization with quintuple nosepiece and auto voltage sensing power supply 110-240V.

Additional DescriptionMore Details

Specifications:
  • MT8530L: Ergonomic LED Trinocular Metallurgical Brightfield /Darkfield Compound Microscope with Incident LED (Reflected) light BF/DF and Transmitted light LED BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical LED Köhler illuminator , with infinity tube lens, focal length 200mm, LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler LED illumination and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V
  • MA816: Trinocular head – Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30° degrees (Included in Model MT8530 and MT8530L)
  • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
  • MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
  • MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
  • MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
  • MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
  • MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
  • MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
  • MA928/LED: Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (Without transformer)
  • MA928/05L: Automatic voltage sensing power supply for MA928/L provided in separate case (Input 100V~240V, Output 12V 50W)
  • MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
  • Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
  • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA910/05: Substage condenser with iris diaphragm, dovetail mount
  • LED/SP-1: Bulb 3W LED, 5500K color temperature (Incident and Transmitted LED Bulb)(Factory installed)
  • MA929: Fuse 0.5A for MT8500 LED Illuminator (Factory Installed)
  • MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
  • MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
  • MA709: Dust cover for all MT8500 Series models
  • Manual: Meiji Techno America MT8500 Manual
  • Warranty: Limited Lifetime Warranty Card

Price: $0.00

Loading Updating cart…

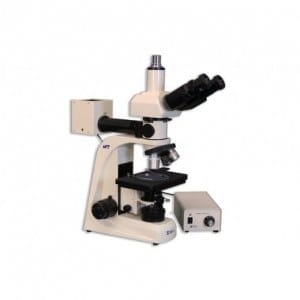

MT8530 Halogen Trino Incident/Transmitted Light BF/DF Metallurgical Microscope

MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view.
Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees. Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp or LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen or LED and simple polarization with quintuple nosepiece and auto voltage sensing power supply 110-240V.

Additional DescriptionMore Details

Specifications:
  • MT8530: Trinocular Metallurgical Brightfield /Darkfield Compound Microscope with Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator , with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V. Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel.
  • MA816: Trinocular head – Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30° degrees (Included in Model MT8530 and MT8530L)
  • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
  • MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
  • MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
  • MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
  • MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
  • MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
  • MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
  • MA928/05: Electronic external transformer with automatic voltage sensing capability for MA928 in separate case (Input 100V~240V, Output 12V 50W) (Included on Halogen models only)
  • MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
  • Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
  • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA910/05: Substage condenser with iris diaphragm, dovetail mount
  • MA275/05: Bulb 12V 50W Halogen lamp (Incident light)(Factory Installed)
  • MA326: Bulb 6V 30W Halogen lamp (Transmitted light)(Factory Installed)
  • MA327: Fuse 3A for transmitted light Halogen Illuminator(Factory Installed)
  • MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
  • MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
  • MA709: Dust cover for all MT8500 Series models
  • Manual: Meiji Techno America MT8500 Manual
  • Warranty: Limited Lifetime Warranty Card

Price: $0.00

Loading Updating cart…

MT8520L LED Bino Incident/Transmitted Light BF/DF Metallurgical Microscope

MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view. Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees. Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. Infinity Corrected optical system F-200MM. Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp or LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen or LED and simple polarization with quintuple nosepiece and auto voltage sensing power supply 110-240V.

Additional DescriptionMore Details

Specifications:
  • MT8520L: Binocular Metallurgical Brightfield /Darkfield Compound Microscope with Incident LED (Reflected) light BF/DF and Transmitted LED light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical LED Köhler illuminator , with infinity tube lens, focal length 200mm, LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler LED illumination and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V. Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel
  • MA815: Binocular head – Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30° degrees (Included in Model MT8520 and MT8520L)
  • MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
  • MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
  • MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
  • MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
  • MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
  • MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
  • MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
  • MA928/LED: Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (Without transformer)
  • MA928/05L: Automatic voltage sensing power supply for MA928/L provided in separate case (Input 100V~240V, Output 12V 50W)
  • MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
  • Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
  • MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
  • MA910/05: Substage condenser with iris diaphragm, dovetail mount
  • LED/SP-1: Bulb 3W LED, 5500K color temperature (Incident and Transmitted LED Bulb)(Factory installed)
  • MA929: Fuse 0.5A for MT8500 LED Illuminator (Factory Installed)
  • MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
  • MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
  • MA709: Dust cover for all MT8500 Series models
  • Manual: Meiji Techno America MT8500 Manual
  • Warranty: Limited Lifetime Warranty Card

Price: $0.00

Loading Updating cart…
Pages: « First < Previous 5 6 7 89 10Next >Last »
