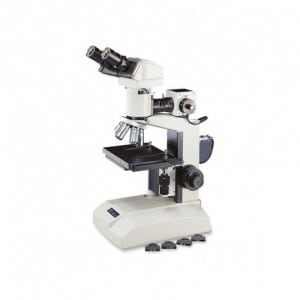

ML7000 Halogen Binocular Metallurgical Microscope

Our base-model metallurgical scope, the ML7000 Metallurgical Microscopes, are the most economical metallurgical microscopes on the market today. Available with binocular viewing heads or with trinocular viewing heads for photo and video applications. Click HERE to view a comparison table with all of our ML Series upright metallurgical scopes.

More Details

Specifications:

ML7000: Binocular Metallurgical Microscopes, with Incident (Reflected) light illumination and “∞ Infinity Optical System”, F=200MM, quintuple nosepiece. 6V 30W Halogen illuminator

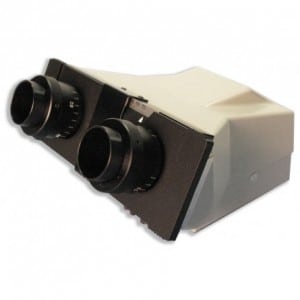

MA657/05 :Binocular head, erect image, with depolarizer and bilateral dioptric adjustments

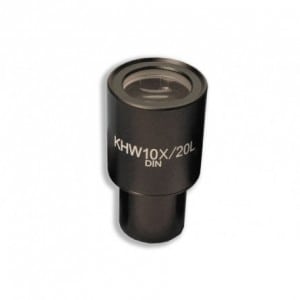

MA407 (x 2): DIN compensating 10X eyepiece, Field No. 20
MA336: S. Plan M4X objective NA 0.10, ∞ Infinity corrected
MA337: S. Plan M10X objective NA 0.25, ∞ Infinity corrected
MA338: S. Plan M20X objective NA 0.40, ∞ Infinity corrected
MA339: S. Plan M40X objective NA 0.65, ∞ Infinity corrected
MA651/100: Vertical Koehler illuminator, 115V, 6V 30W halogen lamp, with infinity tube lens of focal length 200mm, with blue clear, green clear, ND8 Neutral Density and polarizing filter in mount (Without transformer)
MA651/05: Transformer only for the MA651/100, 115V 260.00
MA475/05: Blue clear filter, 15mm diameter in mount for MA268 & MA651
MA476: Green clear filter, 15mm diameter in mount for MA268 & MA651
MA198: ND8 neutral density filter, 15mm diameter in mount for MA268 and MA651
MA497: Polarizing filter 15mm diameter in mount for MA268 and MA651
MA326: Spare halogen bulb 6V 30W (for both 115V and 220/240V)
MA327: Fuse 3 Amp
MA711: Dust cover for all ML7000 Series microscope
Manual: Meiji Techno America ML7000 Manual
Warranty: Limited Lifetime Warranty Card

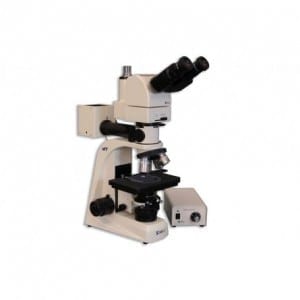

MT8530EL LED Ergo Trino Incident/Transmitted Light BF/DF Metallurgical Microscope

MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view. Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees. Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp or LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen or LED and simple polarization with quintuple nosepiece and auto voltage sensing power supply 110-240V.

More Details

Specifications:

MT8530EL: Ergonomic LED Trinocular Metallurgical Brightfield /Darkfield Compound Microscope with eyepieces adjustable vertically from 10°to 50° degrees. Incident LED (Reflected) light BF/DF and Transmitted light LED BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical LED Köhler illuminator , with infinity tube lens, focal length 200mm, LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler LED illumination and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V
MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees
MA958: Photo/video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
MA928/LED: Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, LED with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (Without transformer)
MA928/05L: Automatic voltage sensing power supply for MA928/L provided in separate case (Input 100V~240V, Output 12V 50W)
MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA910/05: Substage condenser with iris diaphragm, dovetail mount
LED/SP-1: Bulb 3W LED, 5500K color temperature (Incident and Transmitted LED Bulb)(Factory installed)
MA929: Fuse 0.5A for MT8500 LED Illuminator (Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
MA709: Dust cover for all MT8500 Series models
Manual: Meiji Techno America MT8500 Manual
Warranty: Limited Lifetime Warranty Card

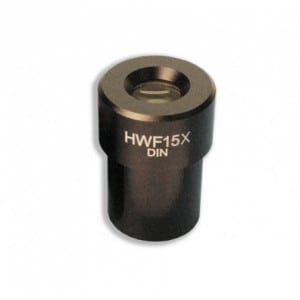

MA408 DIN HWF15X Eyepiece

Meiji Techno UNIMAC Macroscopes are a fully modular universal zoom macroscope system with a wide array of features perfect for industrial, medical, educational, research applications as well as custom or OEM applications.
