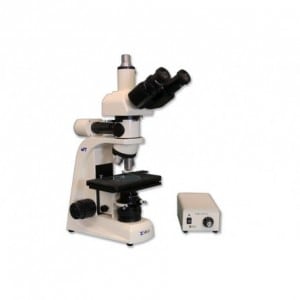

MT8100 Halogen Trino Incident/Transmitted Light BF Metallurgical Microscope

Meiji Techno’s new upright incident and transmitted light brightfield metallurgical microscope line is the new and cost-effective MT8000 Series. The MT8000 Series employs all new and improved Plan Episcopic optical system.

Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT8100: Trinocular Brightfield and Simple Polarization Metallurgical Compound Microscope with Incident (Reflected) and Transmitted light Brightfield Observation and ∞ Infinity Corrected optical system F-200MM. Vertical Kohler 6V 30W Halogen, Transmitted Kohler 6V 30W illumination with quintuple nosepiece and auto voltage sensing power supply
MA816: Trinocular head –Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter in left eyetube (30.0mm I.D. eyetube) Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA870: Plan Epi Objective 5X, N.A. 0.10, W.D. 20.0mm, F.N. 24, ∞ Infinity Corrected
MA871: Plan Epi Objective 10X, N.A. 0.25,W.D. 7.48mm, F.N. 24, ∞ Infinity Corrected
MA872: Plan Epi Objective 20X, N.A. 0.40,W.D. 5.20mm, F.N. 24, ∞ Infinity Corrected
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38mm, F.N. 24, ∞ Infinity Corrected
MA927: Vertical Koehler Illuminator, 6V 30W Halogen lamp, with clear blue, clear green, ND 25, Neutral Density filter, and polarizing filters in metal mounts 100V-240V
MA927/05: Transformer for MA927 in separate case (Input 100V-240V, Output 6V 30W)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA774: N.D. 50 Neutral Density filter, 19.5mm diameter filter in metal mount fits 25mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA942: Ceramic coated flat-top stage, 191mm x 126mm, 100mm x 100mm X-Y movement with right hand drop-down coaxial controls and 94.5mm diameter clear glass stage plate
MA910/05: Substage condenser with iris diaphragm, dovetail mount
MA326: Bulb 6V 30W Halogen lamp (Incident & Transmitted Halogen models)(Factory Installed)
MA327: Fuse 3A for transmitted light Halogen illuminator ( Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models
MA711: Dust Cover for all MT8000 series models
Manual: MT8000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

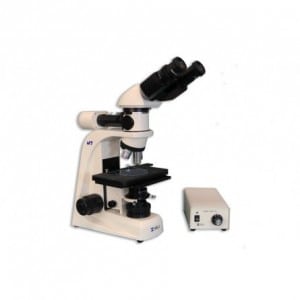

MT8000L LED Bino Incident/Transmitted Light BF Metallurgical Microscope

Meiji Techno’s new upright incident and transmitted light brightfield metallurgical microscope line is the new and cost-effective MT8000 Series. The MT8000 Series employs all new and improved Plan Episcopic optical system.

Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT8000L: Binocular Brightfield and Simple Polarization Metallurgical Compound Microscope, with Incident Vertical LED(Reflected) light and Transmitted 6V 30W, Halogen illumination and ∞ Infinity Corrected optical system F-200MM,with quintuple nosepiece and auto voltage sensing power supply
MA815: Binocular head – siedentopt type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA870: Plan Epi Objective 5X, N.A. 0.10, W.D. 20.0mm, F.N. 24, ∞ Infinity Corrected
MA871: Plan Epi Objective 10X, N.A. 0.25,W.D. 7.48mm, F.N. 24, ∞ Infinity Corrected
MA872: Plan Epi Objective 20X, N.A. 0.40,W.D. 5.20mm, F.N. 24, ∞ Infinity Corrected
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38mm, F.N. 24, ∞ Infinity Corrected
MA927/L: Vertical Koehler Illuminator, LED, with clear blue, clear green, ND 25, Neutral Density filter, and polarizing filters in metal mounts 100V-240V
MA927/05L: Autovoltage sensing power supply for MA927/L provided in separate case (input 100V-240V)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA774: N.D. 50 Neutral Density filter, 19.5mm diameter filter in metal mount fits 25mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA942: Ceramic coated flat-top stage, 191mm x 126mm, 100mm x 100mm X-Y movement with right hand drop-down coaxial controls and 94.5mm diameter clear glass stage plate
MA910/05: Substage condenser with iris diaphragm, dovetail mount
MA326: Bulb 6V 30W Halogen lamp (Incident & Transmitted Halogen models)(Factory Installed)
MA327: Fuse 3A for transmitted light Halogen illuminator ( Factory Installed)
LED/SP-1: 3W LED, 5500K color temperature (Incident Light) (Factory Installed)
MA929: Fuse 0.5Amp for MT8000 incident LED Illuminator (Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models
MA711: Dust Cover for all MT8000 series models
Manual: MT8000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

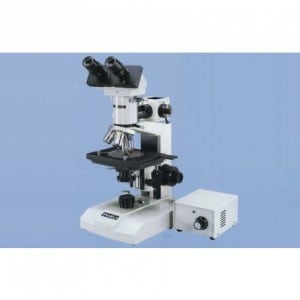

ML8000 Halogen Binocular Metallurgical Microscope

ML8000 Metallurgical Microscopes by Meiji Techno are available in binocular or trinocular models. Authorized Meiji Techno Dealers can also integrate additional optional equipment to tailor a system to meet your specific needs. Click HERE to view a comparison table with all of our metallurgical scopes.

More Details

Specifications:

ML8000: Binocular Metallurgical Microscopes, with Incident (Reflected) and Transmitted light illumination “∞ Infinity Optical System”, F=200MM, quintuple nosepiece. 6V 30W Halogen illuminator
MA657/05: Binocular head, erect image with depolarizer
MA407 (x 2): DIN HWF10X eyepiece, Field No. 20
MA651/100: Vertical Koehler illuminator, 115V, 6V 30W halogen lamp with∞ Infinity tube lens of focal length 200mm, with blue clear, green clear, ND8 Neutral Density and polarizing filters in mount (Without transformer) or
MA651/200: Vertical Koehler illuminator, 220/240V, 6V 30W halogen lamp, with ∞Infinity tube lens of focal length 200mm, with blue clear, green clear, ND8 neutral density and polarizing filter in mount (Without transformer)
MA651/05: Transformer only for the MA651/100, 115V or
MA651/15: Transformer only for the MA651/200, 220/240V
MA336: S. Plan M4X objective N.A.0.10, ∞Infinity Corrected
MA337: S. Plan M10X objective N.A. 0.25, ∞Infinity Corrected
MA338: S. Plan M20X objective N.A. 0.40, ∞Infinity Corrected
MA339: S. Plan M40X objective N.A. 0.65, ∞Infinity Corrected
MA475/05: Blue clear filter, 15mm diameter in mount for MA268 & MA651
MA476: Green clear filter, 15mm diameter in mount for MA268 & MA651
MA198: ND8 neutral density filter, 15mm diameter in mount for MA268 & MA651
MA497: Polarizing filter, 15mm diameter in mount for MA268 & MA651
MA803: Substage condenser with Iris diaphragm for ML8000 series
MA701: Dust cover for ML8000
MA326: Spare lamp 6V 30W halogen for transmitted and vertical illuminators
MA327: Fuse 3Amp
Manual: Meiji Techno America ML8000 Manual
Warranty: Limited Lifetime Warranty Card

MT8000 Halogen Bino Incident/Transmitted Light BF Metallurgical Microscope

Meiji Techno’s new upright incident and transmitted light brightfield metallurgical microscope line is the new and cost-effective MT8000 Series. The MT8000 Series employs all new and improved Plan Episcopic optical system.

Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT8000: Binocular Brightfield and Simple Polarization Metallurgical Compound Microscope with Incident (Reflected) and Transmitted light Brightfield Observation and ∞ Infinity Corrected optical system F-200MM. Vertical Kohler 6V 30W Halogen, Transmitted Kohler 6V 30W illumination with quintuple nosepiece and auto voltage sensing power supply
MA815: Binocular head – siedentopt type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA870: Plan Epi Objective 5X, N.A. 0.10, W.D. 20.0mm, F.N. 24, ∞ Infinity Corrected
MA871: Plan Epi Objective 10X, N.A. 0.25,W.D. 7.48mm, F.N. 24, ∞ Infinity Corrected
MA872: Plan Epi Objective 20X, N.A. 0.40,W.D. 5.20mm, F.N. 24, ∞ Infinity Corrected
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38mm, F.N. 24, ∞ Infinity Corrected
MA927: Vertical Koehler Illuminator, 6V 30W Halogen lamp, with clear blue, clear green, ND 25, Neutral Density filter, and polarizing filters in metal mounts 100V-240V
MA927/05: Transformer for MA927 in separate case (Input 100V-240V, Output 6V 30W)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA774: N.D. 50 Neutral Density filter, 19.5mm diameter filter in metal mount fits 25mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA942: Ceramic coated flat-top stage, 191mm x 126mm, 100mm x 100mm X-Y movement with right hand drop-down coaxial controls and 94.5mm diameter clear glass stage plate
MA910/05: Substage condenser with iris diaphragm, dovetail mount
MA326: Bulb 6V 30W Halogen lamp (Incident & Transmitted Halogen models)(Factory Installed)
MA327: Fuse 3A for transmitted light Halogen illuminator ( Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models
MA711: Dust Cover for all MT8000 series models
Manual: MT8000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

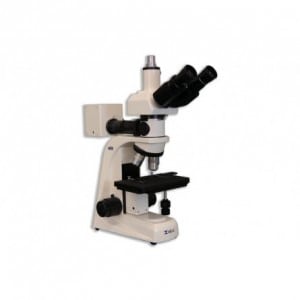

MT7530EL LED Ergo Trino Brightfield/Darkfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield/Darkfield incident light metallurgical microscope line is the new and cost-effective MT7500 Series. The MT7500 Series employs all new and improved Plan Episcopic optical system. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7530EL: Ergonomic Trinocular Metallurgical Brightfield /Darkfield Compound Microscope with eyepiece adjustable vertically from 10 to 50 degrees. Vertical Kohler LED Incident (Reflected) light BF/DF and polarization illumination with ∞ Infinity Corrected optical system F-200MM, with quintuple nosepiece and auto voltage sensing power supply
MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees, Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube)
MA958: Trinocular Photo/Video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA923: Plan Epi Objective BD5X, N.A. 0.10, W.D. 17.0mm, F.N. 22, ∞ Infinity Corrected
MA924: Plan Epi Objective BD10X, N.A. 0.25,W.D. 7.48mm, F.N. 22, ∞ Infinity Corrected
MA925: Plan Epi Objective BD20X, N.A. 0.40, W.D. 5.20mm, F.N. 22, ∞ Infinity Corrected
MA926: Plan Epi Objective BD50X, N.A. 0.75, W.D. 0.38mm, F.N. 22, ∞ Infinity Corrected
MA928/L: Vertical LED BF/DF/POL Illuminator, with clear blue, clear green, ND 50, Neutral Density filter, and polarizing filters in metal mounts 100V-240V automatic sensing power supply
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 Neutral Density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126mm, 100mm X 100mm X-Y movement with right hand drop-down coaxial controls
LED/SP-1: 3W LED, 5500K color temperature
MA929: Spare fuse 0.5A for MT7500 LED Illuminator
MA809/10: Removable AC Electric cord with plug for 115V models
MA709: Dust Cover for MT7500 series models
Manual: MT7500 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

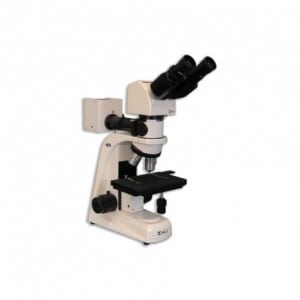

MT7520EL LED Ergo Bino Brightfield/Darkfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield/Darkfield incident light metallurgical microscope line is the new and cost-effective MT7500 Series. The MT7500 Series employs all new and improved Plan Episcopic optical system. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7520EL: Ergonomic Binocular Metallurgical Brightfield /Darkfield Compound Microscope with eyepiece adjustable vertically from 10 to 50 degrees. Vertical Kohler LED Incident (Reflected) light BF/DF and polarization illumination with ∞Infinity Corrected optical system F-200MM, with quintuple nosepiece and auto voltage sensing power supply
MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees, Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA923: Plan Epi Objective BD5X, N.A. 0.10, W.D. 17.0mm, F.N. 22, ∞ Infinity Corrected
MA924: Plan Epi Objective BD10X, N.A. 0.25,W.D. 7.48mm, F.N. 22, ∞ Infinity Corrected
MA925: Plan Epi Objective BD20X, N.A. 0.40, W.D. 5.20mm, F.N. 22, ∞ Infinity Corrected
MA926: Plan Epi Objective BD50X, N.A. 0.75, W.D. 0.38mm, F.N. 22, ∞ Infinity Corrected
MA928/L: Vertical LED BF/DF/POL Illuminator, with clear blue, clear green, ND 50, Neutral Density filter, and polarizing filters in metal mounts 100V-240V automatic sensing power supply
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 Neutral Density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126mm, 100mm X 100mm X-Y movement with right hand drop-down coaxial controls
LED/SP-1: 3W LED, 5500K color temperature
MA929: Spare fuse 0.5A for MT7500 LED Illuminator
MA809/10: Removable AC Electric cord with plug for 115V models
MA709: Dust Cover for MT7500 series models
Manual: MT7500 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

MT7520EH Halogen Ergo Bino Brightfield/Darkfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield/Darkfield incident light metallurgical microscope line is the new and cost-effective MT7500 Series. The MT7500 Series employs all new and improved Plan Episcopic optical system. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7520EH: Ergonomic Binocular Metallurgical Brightfield / Darkfield Compound Microscope, eyepiece adjustable vertically from 10 to 50 degrees. Incident (Reflected) light BF/DF Observation with ∞ Infinity Corrected optical system F-200MM. Vertical Kohler 12V 50W Halogen and polarization with quintuple nosepiece and auto voltage sensing power supply
MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees, Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA923: Plan Epi Objective BD5X, N.A. 0.10, W.D. 17.0mm, F.N. 22, ∞ Infinity Corrected
MA924: Plan Epi Objective BD10X, N.A. 0.25,W.D. 7.48mm, F.N. 22, ∞ Infinity Corrected
MA925: Plan Epi Objective BD20X, N.A. 0.40, W.D. 5.20mm, F.N. 22, ∞ Infinity Corrected
MA926: Plan Epi Objective BD50X, N.A. 0.75, W.D. 0.38mm, F.N. 22, ∞ Infinity Corrected
MA928: Vertical Koehler Illuminator, 12V 50W halogen lamp, with clear blue, clear green, ND 50 Neutral Density filter, and polarizing filter in metal mounts 100V-240V automatic sensing power supply
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 Neutral Density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126mm, 100mm X 100mm X-Y movement with right hand drop-down coaxial controls
MA275/05: Spare bulb, 12V, 50W Halogen lamp
MA327: Fuse 3Amp
MA809/10: Removable AC Electric cord with plug for 115V models
MA709: Dust Cover for MT7500 series models
Manual: MT7500 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

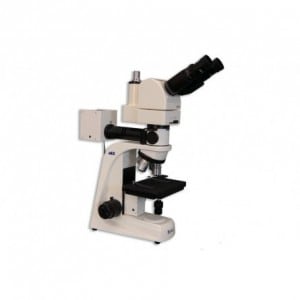

MT7530EH Halogen Ergo Trino Brightfield/Darkfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield/Darkfield incident light metallurgical microscope line is the new and cost-effective MT7500 Series. The MT7500 Series employs all new and improved Plan Episcopic optical system. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7530EH: Ergonomic Trinocular Metallurgical Brightfield /Darkfield Compound Microscope with eyepiece adjustable vertically from 10 to 50 degrees. Incident (Reflected) light BF/DF Observation with ∞ Infinity Corrected optical system F-200MM. Vertical Kohler 12V 50W Halogen and polarization with quintuple nosepiece and auto voltage sensing power supply
MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees, Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube)
MA958: Trinocular Photo/Video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA923: Plan Epi Objective BD5X, N.A. 0.10, W.D. 17.0mm, F.N. 22, ∞ Infinity Corrected
MA924: Plan Epi Objective BD10X, N.A. 0.25,W.D. 7.48mm, F.N. 22, ∞ Infinity Corrected
MA925: Plan Epi Objective BD20X, N.A. 0.40, W.D. 5.20mm, F.N. 22, ∞ Infinity Corrected
MA926: Plan Epi Objective BD50X, N.A. 0.75, W.D. 0.38mm, F.N. 22, ∞ Infinity Corrected
MA928: Vertical Koehler Illuminator, 12V 50W halogen lamp, with clear blue, clear green, ND 50 Neutral Density filter, and polarizing filter in metal mounts 100V-240V automatic sensing power supply
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 Neutral Density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126mm, 100mm X 100mm X-Y movement with right hand drop-down coaxial controls
MA275/05: Spare bulb, 12V, 50W Halogen lamp
MA327: Fuse 3Amp
MA809/10: Removable AC Electric cord with plug for 115V models
MA709: Dust Cover for MT7500 series models
Manual: MT7500 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

MT7530L LED Trino Brightfield/Darkfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield/Darkfield incident light metallurgical microscope line is the new and cost-effective MT7500 Series. The MT7500 Series employs all new and improved Plan Episcopic optical system. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7530L: Trinocular Metallurgical Brightfield /Darkfield Compound microscope with Infinity Corrected optical system F-200MM. Vertical Kohler incident LED BF/DF and polarization illumination with quintuple nosepiece and auto voltage sensing power supply
MA816: Trinocular head –Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter in left eyetube (30.0mm I.D. eyetube),Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA923: Plan Epi Objective BD5X, N.A. 0.10, W.D. 17.0mm, F.N. 22, ∞ Infinity Corrected
MA924: Plan Epi Objective BD10X, N.A. 0.25,W.D. 7.48mm, F.N. 22, ∞ Infinity Corrected
MA925: Plan Epi Objective BD20X, N.A. 0.40, W.D. 5.20mm, F.N. 22, ∞ Infinity Corrected
MA926: Plan Epi Objective BD50X, N.A. 0.75, W.D. 0.38mm, F.N. 22, ∞ Infinity Corrected
MA928/L: Vertical LED BF/DF/POL Illuminator, with clear blue, clear green, ND 50, Neutral Density filter, and polarizing filters in metal mounts 100V-240V automatic sensing power supply
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 Neutral Density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126mm, 100mm X 100mm X-Y movement with right hand drop-down coaxial controls
LED/SP-1: 3W LED, 5500K color temperature
MA929: Spare fuse 0.5A for MT7500 LED Illuminator
MA809/10: Removable AC Electric cord with plug for 115V models
MA709: Dust Cover for MT7500 series models
Manual: MT7500 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

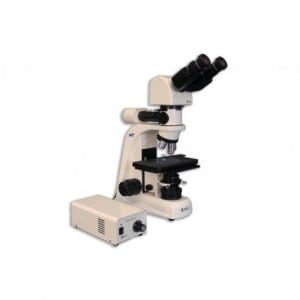

MT8000EH Halogen Ergo Bino Incident/Transmitted Light BF Metallurgical Microscope

Meiji Techno’s new upright incident and transmitted light brightfield metallurgical microscope line is the new and cost-effective MT8000 Series. The MT8000 Series employs all new and improved Plan Episcopic optical system.

Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT8000EH: Ergonomic Binocular Brightfield and Simple Polarization Metallurgical Compound Microscope, eyepieces adjustable vertically from 10 to 50 degrees with Incident (Reflected) and Transmitted light Brightfield Observation and ∞ Infinity Corrected optical system F-200MM. Vertical Kohler 6V 30W Halogen, Transmitted Kohler 6V 30W illumination with quintuple nosepiece and auto voltage sensing power supply
MA957: Ergonomic tilting binocular head – Eyepieces Adjustable vertically from 10 to 50 degrees, Siedentopf type, Interpupillary adjustment 53mm to 75mm (30.0mm I.D eyetube)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA871: Plan Epi Objective 10X, N.A. 0.25,W.D. 7.48mm, F.N. 24, ∞ Infinity Corrected
MA872: Plan Epi Objective 20X, N.A. 0.40,W.D. 5.20mm, F.N. 24, ∞ Infinity Corrected
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38mm, F.N. 24, ∞ Infinity Corrected
MA927: Vertical Koehler Illuminator, 6V 30W Halogen lamp, with clear blue, clear green, ND 25, Neutral Density filter, and polarizing filters in metal mounts 100V-240V
MA927/05: Transformer for MA927 in separate case (Input 100V-240V, Output 6V 30W)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA774: N.D. 50 Neutral Density filter, 19.5mm diameter filter in metal mount fits 25mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA942: Ceramic coated flat-top stage, 191mm x 126mm, 100mm x 100mm X-Y movement with right hand drop-down coaxial controls and 94.5mm diameter clear glass stage plate
MA910/05: Substage condenser with iris diaphragm, dovetail mount
MA326: Bulb 6V 30W Halogen lamp (Incident & Transmitted Halogen models)(Factory Installed)
MA327: Fuse 3A for transmitted light Halogen illuminator ( Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models
MA711: Dust Cover for all MT8000 series models
Manual: MT8000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card
