MT7520L LED Bino Brightfield/Darkfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield/Darkfield incident light metallurgical microscope line is the new and cost-effective MT7500 Series. The MT7500 Series employs all new and improved Plan Episcopic optical system. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7520L: Binocular Metallurgical Brightfield /Darkfield Compound microscope with Infinity Corrected optical system F-200MM. Vertical Kohler incident LED BF/DF and polarization illumination with quintuple nosepiece and auto voltage sensing power supply
MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA923: Plan Epi Objective BD5X, N.A. 0.10, W.D. 17.0mm, F.N. 22, ∞ Infinity Corrected
MA924: Plan Epi Objective BD10X, N.A. 0.25,W.D. 7.48mm, F.N. 22, ∞ Infinity Corrected
MA925: Plan Epi Objective BD20X, N.A. 0.40, W.D. 5.20mm, F.N. 22, ∞ Infinity Corrected
MA926: Plan Epi Objective BD50X, N.A. 0.75, W.D. 0.38mm, F.N. 22, ∞ Infinity Corrected
MA928/L: Vertical LED BF/DF/POL Illuminator, with clear blue, clear green, ND 50, Neutral Density filter, and polarizing filters in metal mounts 100V-240V automatic sensing power supply
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 Neutral Density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126mm, 100mm X 100mm X-Y movement with right hand drop-down coaxial controls
LED/SP-1: 3W LED, 5500K color temperature
MA929: Spare fuse 0.5A for MT7500 LED Illuminator
MA809/10: Removable AC Electric cord with plug for 115V models
MA709: Dust Cover for MT7500 series models
Manual: MT7500 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

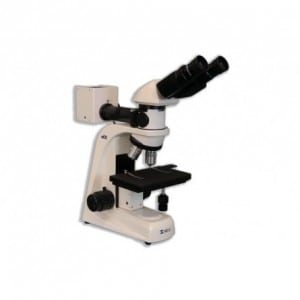

MT7520 Halogen Bino Brightfield/Darkfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield/Darkfield incident light metallurgical microscope line is the new and cost-effective MT7500 Series. The MT7500 Series employs all new and improved Plan Episcopic optical system. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the obsevation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7520: Binocular Metallurgical Brightfield /Darkfield Compound Microscope with Incident (Reflected) light BF/DF Observation.∞ Infinity Corrected optical system F-200MM. Vertical Kohler, 12V, 50W Halogen BF/DF and polarization with quintuple nosepiece and auto voltage sensing power supply
MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
MA923: Plan Epi Objective BD5X, N.A. 0.10, W.D. 17.0mm, F.N. 22, ∞ Infinity Corrected
MA924: Plan Epi Objective BD10X, N.A. 0.25,W.D. 7.48mm, F.N. 22, ∞ Infinity Corrected
MA925: Plan Epi Objective BD20X, N.A. 0.40, W.D. 5.20mm, F.N. 22, ∞ Infinity Corrected
MA926: Plan Epi Objective BD50X, N.A. 0.75, W.D. 0.38mm, F.N. 22, ∞ Infinity Corrected
MA928: Vertical Koehler Illuminator, 12V 50W halogen lamp, with clear blue, clear green, ND 50 Neutral Density filter, and polarizing filter in metal mounts 100V-240V automatic sensing power supply
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 Neutral Density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126mm, 100mm X 100mm X-Y movement with right hand drop-down coaxial controls
MA275/05: Spare bulb, 12V, 50W Halogen lamp
MA327: Fuse 3Amp
MA809/10: Removable AC Electric cord with plug for 115V models
MA709: Dust Cover for MT7500 series models
Manual: MT7500 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

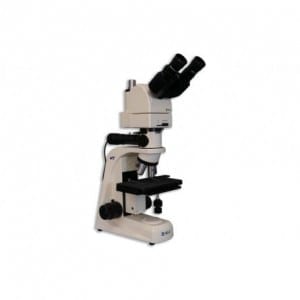

MT7100EL LED Ergo Trino Brightfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7100EL: ErgonomicTrinocular Compound Metallurgical Microscope, eyepieces adjustable vertically from 10 to 50 degrees, Koehler LED Incident (Reflected) light observation and Infinity Corrected Optical System
MA957: Ergonomic Binocular head- eyepieces adjustable vertically from 10 to 50 degrees, Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube)
MA958: Photo/Video Trinocular attachment with sliding 80/20 beam-splitter. For use with video or digital camera adapters when MA957 ergonomic head is used
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
MA927/L: Vertical Koehler LED illuminator, with clear blue, N.D.50 neutral density filter and polarizing filter in metal mounts. Auto voltage sensing AC adapter built into stand 100V-240V (Powered by transformer built into MT7000L Series stand)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
PKL/LED-I/BULB: 5W LED Bulb for LED illuminator(Factory Installed)
MA929: 0.5Amp Fuse for LED illuminator(Factory Installed)
MA809/20: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual
Warranty: Limited Lifetime Warranty Card

‘

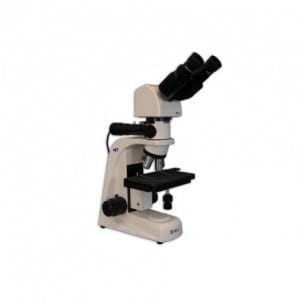

MT7000EL LED Ergo Bino Brightfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7000EL: Ergonomic Binocular Compound Metallurgical Microscope with Vertical Koehler LED Incident (Reflected) light observation and Infinity Corrected Optical System
MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
MA927/L: Vertical Koehler LED illuminator, with clear blue, N.D.50 neutral density filter and polarizing filter in metal mounts. Auto voltage sensing AC adapter built into stand 100V-240V (Powered by transformer built into MT7000L Series stand)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
PKL/LED-I/BULB: 5W LED Bulb for LED illuminator(Factory Installed)
MA929: 0.5Amp Fuse for LED illuminator(Factory Installed)
MA809/20: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece’
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual
Warranty: Limited Lifetime Warranty Card

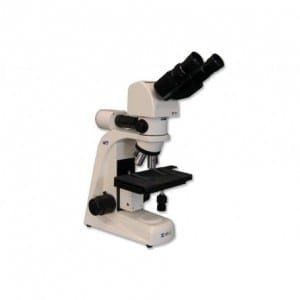

MT7000EH Halogen Ergo Bino Brightfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7000EH: Ergonomic Binocular Compound Metallurgical Microscope, eyepieces adjustable vertically from 10 to 50 degrees, 6V 30W Halogen Koehler Incident (Reflected) light observation and Infinity Corrected Optical System
MA957: Ergonomic Binocular head- eyepieces adjustable vertically from 10 to 50 degrees, Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
MA326: 6V 30W Halogen lamp (Factory Installed)
MA327: 3 Amp Fuse for Halogen illuminator (Factory Installed)
MA809/10: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual
Warranty: Limited Lifetime Warranty Card

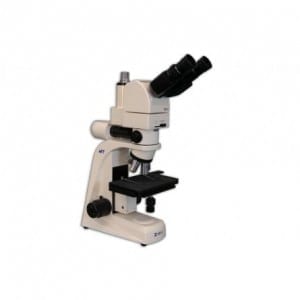

MT7100EH Halogen Ergo Trino Brightfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7100EH: Ergonomic Trinocular Compound Metallurgical Microscope, eyepieces adjustable vertically from 10 to 50 degrees, Incident 6V 30W Halogen Koehler(Reflected) light observation and Infinity Corrected Optical System
MA957: Ergonomic Binocular head- eyepieces adjustable vertically from 10 to 50 degrees, Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube)
MA958: Photo/Video Trinocular attachment with sliding 80/20 beam-splitter. For use with video or digital camera adapters when MA957 ergonomic head is used
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
MA326: 6V 30W Halogen lamp (Factory Installed)
MA327: 3 Amp Fuse for Halogen illuminator (Factory Installed)
MA809/10: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual
Warranty: Limited Lifetime Warranty Card

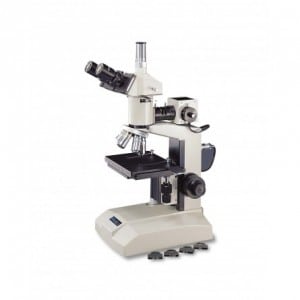

ML7100 Halogen Trinocular Metallurgical Microscope

Our base-model metallurgical scope, the ML7000 Metallurgical Microscopes, are the most economical metallurgical microscopes on the market today. Available with binocular viewing heads or with trinocular viewing heads for photo and video applications. Click HERE to view a comparison table with all of our ML Series upright metallurgical scopes.

More Details

Specifications:

ML7100: Trinocular Metallurgical Microscopes, with Incident (Reflected) light illumination and “∞ Infinity Optical System”, F=200MM, quintuple nosepiece. 6V 30W Halogen illuminator
MA603/05: Trinocular head, non-erect image, with 80/20 beam splitter & depolarizer
MA407 (x 2): DIN compensating 10X eyepiece, Field No. 20
MA336: S. Plan M4X objective NA 0.10, ∞ Infinity corrected
MA337: S. Plan M10X objective NA 0.25, ∞ Infinity corrected
MA338: S. Plan M20X objective NA 0.40, ∞ Infinity corrected
MA339: S. Plan M40X objective NA 0.65, ∞ Infinity corrected
MA651/100: Vertical Koehler illuminator, 115V, 6V 30W halogen lamp, with infinity tube lens of focal length 200mm, with blue clear, green clear, ND8 Neutral Density and polarizing filter in mount (Without transformer)
MA651/05: Transformer only for the MA651/100, 115V 260.00
MA475/05: Blue clear filter, 15mm diameter in mount for MA268 & MA651
MA476: Green clear filter, 15mm diameter in mount for MA268 & MA651
MA198: ND8 neutral density filter, 15mm diameter in mount for MA268 and MA651
MA497: Polarizing filter 15mm diameter in mount for MA268 and MA651
MA326: Spare halogen bulb 6V 30W (for both 115V and 220/240V)
MA327: Fuse 3 Amp
MA711: Dust cover for all ML7000 Series microscope
Manual: Meiji Techno America ML7000 Manual
Warranty: Limited Lifetime Warranty Card

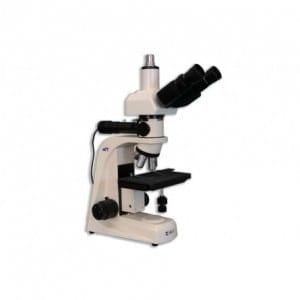

MT7100L LED Trino Brightfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7100L: Trinocular Compound Metallurgical Microscope with Vertical Koehler LED Incident (Reflected) light observation and Infinity Corrected Optical System
MA816: Trinocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
MA927/L: Vertical Koehler LED illuminator, with clear blue, N.D.50 neutral density filter and polarizing filter in metal mounts. Auto voltage sensing AC adapter built into stand 100V-240V (Powered by transformer built into MT7000L Series stand)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
PKL/LED-I/BULB: 5W LED Bulb for LED illuminator(Factory Installed)
MA929: 0.5Amp Fuse for LED illuminator(Factory Installed)
MA809/20: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual
Warranty: Limited Lifetime Warranty Card

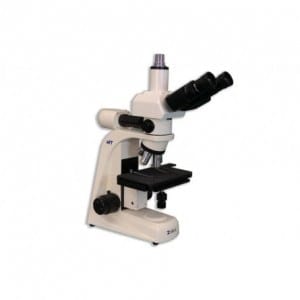

MT7100 Halogen Trino Brightfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

More Details

Specifications:

MT7100: Trinocular Compound Metallurgical Microscope with 6V 30W Halogen Koehler Incident (Reflected) light observation and Infinity Corrected Optical System
MA816: Trinocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
MA326: 6V 30W Halogen lamp (Factory Installed)
MA327: 3 Amp Fuse for Halogen illuminator (Factory Installed)
MA809/10: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual
Warranty: Limited Lifetime Warranty Card

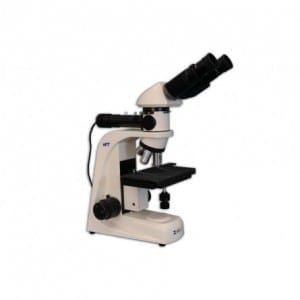

MT7000L LED Bino Brightfield Metallurgical Microscope

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

The MT7000 Series features include:

Computer Aided Design
Ergonomically positioned controls
Comfortable Siedentopf viewing head
30W Vertical Koehler Illuminator with auto sensing power supply
Brightfield observation mode
Optional Ergonomic binocular viewing head available

More Details

Specifications:

MT7000L: Binocular Compound Metallurgical Microscope with Vertical Koehler LED Incident (Reflected) light observation and Infinity Corrected Optical System
MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
PKL/LED-I/BULB: 5W LED Bulb for LED illuminator(Factory Installed)
MA929: 0.5Amp Fuse for LED illuminator(Factory Installed)
MA809/20: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual
Warranty: Limited Lifetime Warranty Card
