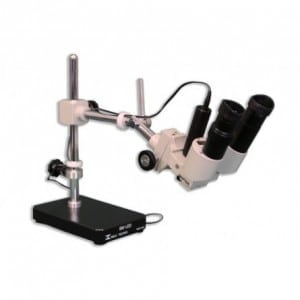

BM-1LED Stereo Microscopes
BM and BMK LED Series Long Arm Stereo Microscopes from Meiji Techno are high quality industrial and healthcare quality stereo microscopes mounted on a 255mm horizontal inclinable arm supported by a 300mm vertical post and heavy cast base. The integral illuminators on BM Models feature a three lens condenser system fitted into the binocular body and an AC auto voltage sensing power supply. BMK Model illuminators are mounted on the side with a ball swivel. The paired interchangeable parfocal objectives are mounted on a dovetail slide. Each unit is supplied with a plastic dust cover, grounded power cord and fitted Styrofoam packing.
|
Model
|
Objective
|
Eyepieces
|
Magnifications
|
Illuminatior
|
|
BM-1LED |
1X and 2X
|
WF10X
|
10X and 20X
|
High Intensity LED
|
|
BM-2LED |
1X, 2X and 3.5X
|
10X, 20X and 35X
|
BM-2LED Stereo Microscopes
BM and BMK LED Series Long Arm Stereo Microscopes from Meiji Techno are high quality industrial and healthcare quality stereo microscopes mounted on a 255mm horizontal inclinable arm supported by a 300mm vertical post and heavy cast base. The integral illuminators on BM Models feature a three lens condenser system fitted into the binocular body and an AC auto voltage sensing power supply. BMK Model illuminators are mounted on the side with a ball swivel. The paired interchangeable parfocal objectives are mounted on a dovetail slide. Each unit is supplied with a plastic dust cover, grounded power cord and fitted Styrofoam packing.

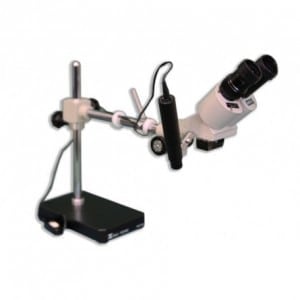

BMK-1/LED Stereo Microscopes
BM and BMK LED Series Long Arm Stereo Microscopes from Meiji Techno are high quality industrial and healthcare quality stereo microscopes mounted on a 255mm horizontal inclinable arm supported by a 300mm vertical post and heavy cast base. The integral illuminators on BM Models feature a three lens condenser system fitted into the binocular body and an AC auto voltage sensing power supply. BMK Model illuminators are mounted on the side with a ball swivel. The paired interchangeable parfocal objectives are mounted on a dovetail slide. Each unit is supplied with a plastic dust cover, grounded power cord and fitted Styrofoam packing.
|
Model
|
Objective
|
Eyepieces
|
Magnifications
|
Illuminatior
|
|
BMK-1/LED |
1X and 2X
|
WF10X
|
10X and 20X
|
High Intensity LED
|
|
BMK-2/LED |
1X, 2X and 3.5X
|
10X, 20X and 35X
|
High Intensity LED InclinableIncident Illuminator
|
BMK-2/LED Stereo Microscopes
BM and BMK LED Series Long Arm Stereo Microscopes from Meiji Techno are high quality industrial and healthcare quality stereo microscopes mounted on a 255mm horizontal inclinable arm supported by a 300mm vertical post and heavy cast base. The integral illuminators on BM Models feature a three lens condenser system fitted into the binocular body and an AC auto voltage sensing power supply. BMK Model illuminators are mounted on the side with a ball swivel. The paired interchangeable parfocal objectives are mounted on a dovetail slide. Each unit is supplied with a plastic dust cover, grounded power cord and fitted Styrofoam packing.
|
Model
|
Objective
|
Eyepieces
|
Magnifications
|
Illuminatior
|
|
BMK-1/LED |
1X and 2X
|
WF10X
|
10X and 20X
|
High Intensity LED
|
|
BMK-2/LED |
1X, 2X and 3.5X
|
10X, 20X and 35X
|
High Intensity LED InclinableIncident Illuminator
|
