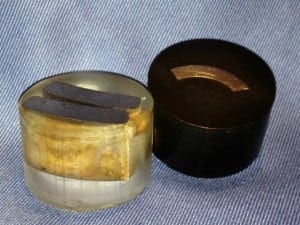

Compression
| Name | Color |
| LUCITE | TRANSPARENT |

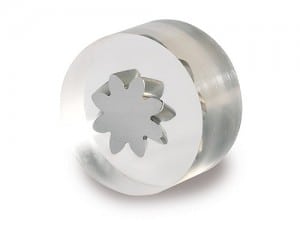

| LUCITE THERMOPLASTIC provides an economical transparent mount for specimens. Allows the operator to see areas of interest on the mount. Good edge retention & med hardness. |
|
| PHENOLIC THERMOSETTING | BLACK |
| RED | |
| GREEN | |
| PHENOLIC THERMOSETTING These are the most popular and economcal materials to use. Its fast, has a med shrinkage, med edge retention and low hardness. | |
| DIALLYL PHTHALATE SHORT GLASS | BLUE |
| GREEN | |
| DIALLYL PHTHALATE SHORT GLASS used for a harder surface finish. Chemical resistance. Excellent edge retention. | |
| DYALLYL PHTHALATE MINERAL FILLED | BLUE |
| DIALLYL PHTHALATE MINERAL FILLED provides moderate shrinkage and chemical resistance. Excellent edge retention, high hardness. | |
| BLACK EPOXY COURSE/GLASS FILLED | BLACK |
| BLACK EPOXY FINE/FILLED | BLACK |
| BLACK EPOXY THERMOSETTING has superior edge retention, tough grinding and excellent flow characteristics. Chemical resistant. High hardness. | |

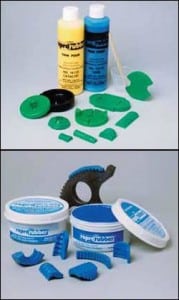

Replicating Systems
For internal-shape applications where a thin pour will completely fill the cavity without voids. A complete replica casting is quickly formed.
- Manipulation time is 5 minutes and cure time is 15 minutes.
- Start to finish: 20 minutes.
- Kits include graduated mixing cups, wooden spatulas and instructions.
- Use with REPRO-MIX Dispensing Gun System
Roll tow equal-sized balls of catalyst putty and base putty and simply knead them together like dough.
Excellent for external shapes. Simply spread over master pushing down with fingers and wait for cure 8-10 minutes. You have 3 or 4 minutes of manipulation time - Therefore 14 minutes start to finish. You can also cast internal shapes and cavities but some pressure should be applied sush as a weighted object on top.

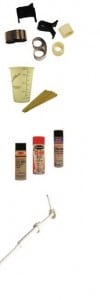

Mounting Supplies
| Type | Description |
| Mounting Clips | Met-clips (metal) |
| Met-clips (plastic) | |
| Uni-clips (black plastic) | |
| Cups / Sticks | (7oz) Waxed Graduated |
| (7oz) Paper Graduated | |
| (4oz) Plastic Graduated Wooden Spatulas | |
| Spray Cans | Silicone lubricant |
| Fluorocarbon dry lube | |
| Cleaner / Degreaser Plastic spray | |
| Scoops & Pumps | Gallon Pump |
| Powder Scoop | |
| Safety Ware | Disposable Gloves |
| Safety Glasses |
Clear Mounting
Non Compression
Epo-Tek epoxies are two-part, optically transparent expoxy systems with very low viscosity (comparable to water) which allows them to penetrate deeply and to be infused in small crevices or cracks. They have demonstrated excellent resistance to yellowing, and when fully cured, provide extremely hard bond strength. They may be cured with or without heat, and are ideal for bonding glass, ceramics, quartz, metals and most plastics. Epo-Tek 301-2, in addition, has been used in conservation with wooden objects where it is impregnated to restore strength and to bind the wood fibers together. In studies in Conservation, Ep-Tek 301 placed among the five formulations found to be most durable under high as well as low light conditions. Users refer to the products ease of use and to the fact that it cures fully within 24 hours, although the cure times are the main differences in the two products. Epo-Tek 301 has a shorter cure time, setting in an hour or two at 65 C and overnight at room temperature.
