Product Category: Blacklights

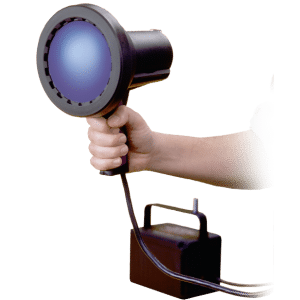

We developed the SB-100P Series UV-A lamps to be very affordable, super-high intensity “workhorses” for MPI and FPI inspections.

Both models come with a special heat-resistant, 3-wire secondary cord. The primary and secondary cords are both 8 feet (2.4 m) long. Lamps are also available with extended length primary or secondary cords, or with a 35 foot (10.7 m) secondary cord housed in a retractable “flying” reel.


• Combines state-of-the-art innovations with proven features. The cord comes out of the staycool, contoured handle to prevent tangling, and the crack-resistant, tempered filter reduces replacement costs significantly.
• Lamp head and transformer base housings are constructed of a special heat-resistant engineering polymer that ensures years of rugged use
• Lamp head is ergonomically designed and detaches easily from the transformer base for comfortable, fatigue-free handling
• Transformer provides maximum power to the unit and features an indicator light to show when the lamp is on
• Easily meets ASTM UV-A intensity specifications for FPI and MPI
• Available in concentrated spot (SB-100P) and diffused (SB-100PD) versions. Spot configuration has a nominal steady-state UV-A intensity of 4,800 μW/cm2 at 15 inches (38 cm). Diffused configuration has a nominal steady-state UV-A intensity of 2,200 μW/cm2 at 15 inches (38 cm).
• Bulbs feature average rated life of 5,000 hours

For use in any Nondestructive Evaluation or Specialty Application that requires UV-A light.

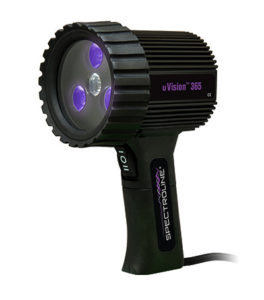

Lightweight, IP 65 Rated inspection lamps can be used in nondestructive evaluation, forensics, and security inspections. In addition to three powerful UV-A LEDs, the uVision comes with a convenient White LED for illuminating work areas.

Key Features and Benefits

• Cordless – portable for use in the field
• Battery in the handle – self-contained unit
• Long battery life: 8-12 hours
• Quick charging: 3-4 hours
• Large battery base – can stand up on its own
• D-ring hook on backplate – for storage or belt clip
• IP65 rating – dust-proof and water-resistant
• Cool-running, fan-less design
• Wide, even beam profile
• Long-lasting UV-A lenses protect against solarization
• Adjustable white light
• Meets ISO EN 3059 specs for fluorescent inspection
• ASTM E3022 Compliant Versions Available
• RRES 90061 Compliant Versions Available
• AITM6-1001 Compliant Versions Available

Classic Design. Modern Technology. Economic Price.

VINTAGE ERGONOMIC DESIGN
Classic design with modern LED technology

COST EFFECTIVE
Quality lamp at economic price

WIDE BEAM PROFILE
Light output equivalent to classic HID lamps

FANLESS DESIGN
Cool running and efficient

Key Features and Benefits

• Nominal steady state intensity of 5,500 µW/cm2 at 15 inches
• Less than 1 fc of visible light emission
• Wide beam diameter of 8 in (21 cm) of at least 1,200 µW/cm2 at 15 inches
• Meets ISO 3059 specifications
• Certificate of Light Output included
• Lightweight – 2.1 lbs (0.95 kg)
• Long-lasting UV-A lenses
• Ergonomic handle, durable housing
• Cool running, fanless design
• Consistent beam profile
• Reliable performance

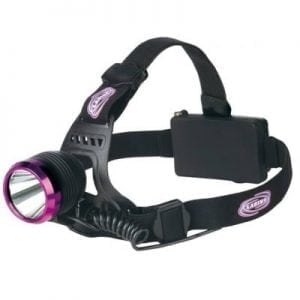

Small, light and powerful, UVG torch is a convenient tool for quick inspections. UVG headlight is compact, light and adjustable that frees your hands during inspections.

UVG Series products UVG2-5 are small and compact lights with a powerful output that offer convenience during quick inspections.

UVG2 and UVG3 torches weigh just 211 grams (7.4 oz) and the UVG4 and UVG5 headlights weigh just 271 grams (9.4 oz). The UVG3 torch and UVG5 headlight have been specifically designed to meet the ASTM E3022-15 and ISO 3059-12 standards as well as requirements set by the PRIMES.

High UV intensity and great portability.

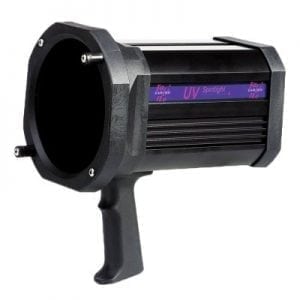

Labino Compact and DUO UV lamps are operated via mains only. Labino TrAc Light and TrAc Light PRO are battery operated.

These 35-Watt UV lamps generate a very high UV intensity, suitable for inspections in heavy industries with very difficult operating environments.

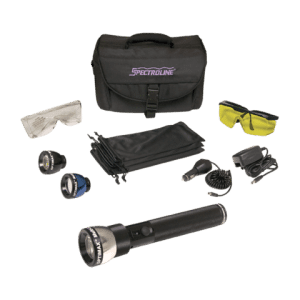

A New Powerful, Versatile, Multiple Wavelength, NDT Inspection Light!

The OPK-300N Multi-Lite® Kit features three Qwik-Connect™ interchangeable LED lamp heads that connect to a rugged, black-anodized flashlight body. It provides specific illumination in UV-A and blue light, and is ideal for both pre-screening of fluorescent particles in ambient light conditions and full- fledged NDT inspections utilizing magnetic particles or fluorescent penetrants. A convenient white light LED provides general illumination of dark work areas.


• Super-powerful LED optical output with ultra-highintensity 365 nm UV-A and 450 nm blue light performance
• Provides nominal steady-state intensity of 18,000 µW/cm2 (UV LED) or 7,000 µW/cm2 (blue light LED) at 15 inches (38 cm)
• Blue light LED with patented thin-film dichroic lens filters out long-wave visible light
• Electronic Intensity Stabilizer ensures consistent performance. Beam strength will not weaken between charges!
• Instant-on operation. Lamp reaches full intensity immediately!
• Lightweight, cordless, ergonomic design eliminates fatigue
• Meets ASTM UV-A intensity specifications for FPI and MPI
• Powered by a rechargeable NiMH battery. Provides 90 minutes of continuous inspection between charges (smart AC and DC chargers included). AC charger available in 120V, 230V, 240V and 100V versions.

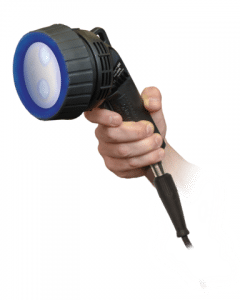

The Perfect NDT Lamp When UV-A Emissions Are a Concern!

Feature three cool-running, ultra-high flux 450 nm blue light LEDs with a broad-beam configuration. This powerful lamp provides a wider coverage area than conventional inspection lamps, while its compact head design allows access into areas inaccessible to larger inspection lamps. Ideal for most non-destructive testing applications.



• Nominal steady-state intensity of 9,500 μW/cm2 at 15 inches (38 cm)
• Large 5 inch (13 cm) diameter coverage area at 15 inches (38 cm), with a minimum intensity of 2,000 μW/cm2
• 100,000-hour LED service life
• Rubber bumper with patented thin-film dichroic lens filters out long-wave visible light
• Electronic Intensity Stabilizer ensures consistent LED performance
• Built-in fans keep LEDs cool to maintain optimum light output during extended use
• Instant-on operation. Lamp reaches full intensity immediately!
• Rugged, ergonomic, angled lamp body provides safe, fatigue-free handling
• Choice of standard 8 foot (2.4 m) or extra-long 20 foot (6.1 m) heavy-duty power cord with AC plug and rubber boot. Also available: Optional in-line power supply or industrial power supply with cord sets (sold seperately). All power supplies in 120V, 230V, 240V or 100V models.
• Includes yellow contrasting spectacles and soft carrying case

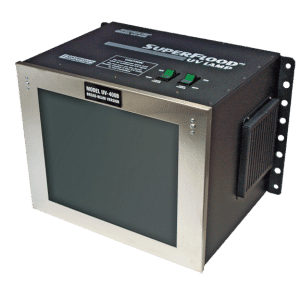

These super-powerful and versatile lamps have been specially engineered for fluorescent penetrant and magnetic particle inspection, parts degreasing inspections and wash station inspections.

• Powerful, 400-watt metal halide bulb, combined with tempered, heat-resistant low solarization UV filters provide the highest intensity over the largest area
• Easily mounts over automated magnetic particle systems or above penetrant inspection booths for the most accurate inspections of even the largest parts
• Unique twin-filter system eliminates hazardous UV-B and UV-C radiation escaping from lamp
• Compact design and built-in mounting features allow lamps to be positioned anywhere – even in previously inaccessible areas

• 365nm intensity of 4,500 µW/cm2 at 15 inches
• Fan cooled, reduces running temperature
• Spectroline FC-150 Lamp
