King Brinell

With the advent of new requirements for quality control, accurate and reliable hardness testers are needed today more than ever. The King Brinell is designed to make impressions that are used to measure the hardness of a metal. A universally recognized tester, the King portable Brinell has a number of advantages.

  • Permanence – Impression can be checked and rechecked at any time.
  • Accuracy – Calibrated accurate to 1/2 of 1% of load. Can be used for higher loads up to 3,000 kg. Breaks through surface heat treatment to get to the core of the material.
  • Durability – Some King Portable Brinell testers have been working for over 60 years.
  • Versatility – Can be used in virtually any position: right side up, upside down or sideways. Take the tester to the metal, not the metal to the tester

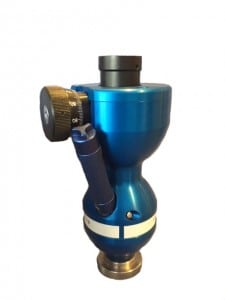

On the market for over 60 years, King Brinell hardness testers are lightweight, easy to maneuver and require only one operator, making them ideal for use as portable or bench units. Versatile enough to test virtually any size and shape of metal specimen, King testers are easy to use. The operator simply places the specimen between the anvil and the test head, cranks the test head down onto the specimen, locking the tester in place, closes the pressure release valve, and pulls the hydraulic lever until the desired load is reached. The tester applies up to a 3,000 kg load on a 10mm ball, making a lasting impression, which is available for re-reading at any time. A by-pass valve is automatically activated at the calibrated load, eliminating the chance of overloading. The impression is then read and recorded by the operator using a Brinell microscope such as the King deep reading microscope or a Kingscan automatic Brinell microscope. The King Portable Brinell meets all international standards for Brinell testing including ASTM E-110, British Standard #240, Pt. 2, Sect. 1 and JIS Standards, and is calibrated to 1/2 of 1% of load on equipment traceable to NIST Standards.

$0.00Price:
Loading Updating cart...

900-355 Digital Motorized BRINELL Hardness Tester

Specifications:
  • Innovative closed-loop technology. The Brinell hardness tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate Brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations.
  • The whole weight of the tester is 50% less than the traditional dead weights type tester.
  • Test load selection by keyboard and LCD screen.
  • Fully automatic test cycles. The Brinell hardness Tester features a fully automatic test cycle, load application, holding, unloading, is performed fully automatically. This greatly improves reproducibility of test results since operator influence is eliminated.
  • Selectable dwell times by screen. The indenter, load, and other test information are shown clearly on the large LCD screen.
  • The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on the screen.
  • Equipped with a 20X optical microscope to measure the diameter of Brinell indention.
  • Brinell Hardness Calculator (BHC) make the hardness value calculation easier and convenient.

Options:

  • NIST/ASTM certified hardness test blocks, penetrators and kits are available.
Brinell Hardness Tester screen samples
Technical data:

Loads:3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),500Kgf (4900N),
250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),100Kgf (980N), 62.5Kgf(612.9N)
Load dwell duration: 2s~99s, can be set and stored
Tungsten Carbide Ball indenter: 10mm, 5mm, 2.5mm
Measuring range: 8-650HBW
Magnification of the microscope: 20X
Resolution capability of the microscope: 0.005mm
Accuracy of Brinell Hardness Value:
Hardness Range(HBW) Error (%) Repeatability(%)
≤ 125 ± 3.0 ≤ 3.0
125 < HBW ≤ 225 ± 2.5 ≤ 2.5
> 225 ± 2.0 ≤ 2.0
Max measurable height: 230 mm
Max measurable depth: 140 mm
Dimensions: 530mm×260mm×750mm
Power supply: 220/110 V, 50/60 Hz, 4A
Weight: 110kg
Standard blocks: 125-350HBW10/3000, 125-350HBW10/1000
Additional DescriptionMore Details

Features:
• Load Cell driven system provides precise control of test force application
• Direct digital reading
• Engineered to obtain highly sensitive and accurate readings
• Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
• Measuring Range: 8-650HBW
