Thickness Gauges |

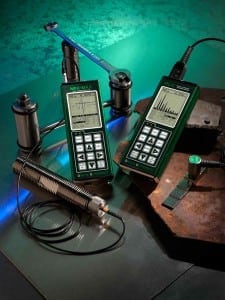

MVX

The MVX finishes the line of MX gauges with class. This thing is loaded with all of the features of the MX gauges and a lot more. Four selectable display options: RF, Rectified, B-Scan, and Large Digits. An internal data logger that stores a total of 12,000 readings and waveforms, 64 user custom definable setups, selectable transducer table for improved linearity, thru paint mode with the single press of a button, multiple calibration and material selection options, and auto waveform find – just to mention a few! Equipped with a single element flaw prove-up mode for basic angle beam inspections. This is all nicely packaged in a very mini portable aluminum extrusion for extra durability and portability! The MVXview java-based PC software makes this thing a complete kit, and then some!

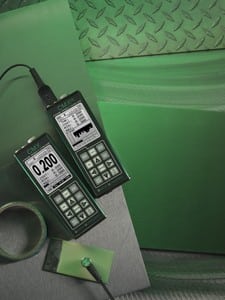

CMX DL

The CMX DL has all the features of the CMX, plus a huge storage capacity, using multiple file structures. Select between to file formats: Sequential, with auto identifiers or, our standard alpha numeric grid format.

The storage capacity is rather impressive. Graphics on: Store 16,000 + readings (material & Coating) with a B-Scan, and all features and gauges settings per reading. Graphics off: Store 210,000+ readings, including material, coating, and min & max readings. Massive storage capacity! The kit includes our DakView java-based PC or MAC OSX software, for transferring and reporting purposes.
