Flaw Detection Gauges |

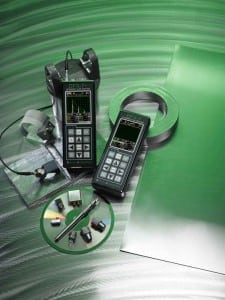

DFX-7

Sizing Toolkits: DAC, AWS, TCG, DGS.
Exception visibility in sunlight (AMOLED) color VGA display (320×240 pixels).
P.R.F. – 8 to 333 Hz, adjustable.
Screen Refresh Rate: Adjustable 60 & 120.
Detection: Z-Cross, Flank & Peak.

Automatic: probe zero, probe recognition, and Temperature compensation.
Measurement: Variety of modes to address a number of applications.
Large data storage with multiple formats: Alpha numeric grid and sequential w/auto identifier.
Windows PC interface software.
2 year limited warranty.

Thickness Gauge:

Automatic: probe zero, probe recognition, and Temperature compensation.
Measurement: Variety of modes to address a number of applications.
Large data storage with multiple formats: Alpha numeric grid and sequential w/auto identifier.
Windows PC & MAC OSX interface software.
2 year limited warranty.

Flaw Detector:

Sizing Toolkits: DAC, AWS, TCG, DGS.
Exception visibility in sunlight (AMOLED) color VGA display (320×240 pixels).
P.R.F. – 8 to 333 Hz, adjustable.
Screen Refresh Rate: Adjustable 60 & 120.
Detection: Z-Cross, Flank & Peak.

DFX-7+

Sizing Toolkits: DAC, AWS, TCG, DGS.
Exception visibility in sunlight (AMOLED) color VGA display (320×240 pixels).
P.R.F. – 8 to 333 Hz, adjustable.
Screen Refresh Rate: Adjustable 60 & 120.
Detection: Z-Cross, Flank & Peak.

Automatic: probe zero, probe recognition, and Temperature compensation.
Measurement: Variety of modes to address a number of applications.
Large data storage with multiple formats: Alpha numeric grid and sequential w/auto identifier.
Windows PC interface software.
2 year limited warranty.

Thickness Gauge

Automatic: probe zero, probe recognition, and Temperature compensation.
Measurement: Variety of modes to address a number of applications.
Large data storage with multiple formats: Alpha numeric grid and sequential w/auto identifier.
Windows PC & MAC OSX interface software.
2 year limited warranty.

Flaw Detector

Sizing Toolkits: DAC, AWS, TCG, DGS.
Exception visibility in sunlight (AMOLED) color VGA display (320×240 pixels).
P.R.F. – 8 to 333 Hz, adjustable.
Screen Refresh Rate: Adjustable 60 & 120.
Detection: Z-Cross, Flank & Peak.

DFX-8

Thickness Gauge Features

Auto: probe zero, probe recognition, and temperature compensation.
Transducer Types: Dual element, Single Contact & Delay line.
Measurement Modes: Includes pulse-echo (P-E), echo-echo (E-E), echo-echo verify (E-EV), pulse-echo coating (PECT), pulse-echo temperature compensation (PETP) & coating only (CT) modes to address a variety of applications.
Three independent gates.
Large data storage with multiple formats: Alpha numeric grid and sequential w/auto identifiers.
Store up to 64 custom setups.

Flaw Detector Features

Pulser Voltage: 100 – 200 volt square wave.
Gain: 0 – 110 dB range.
Filters: Wide, 1, 2, 5 & 10 MHz
Sizing Toolkits: DAC, AWS, TCG, DGS.
Blanview sunlight viewable QVGA display (320×240 pixels).
P.R.F. – 8Hz to 2kHz, adjustable.
Screen Refresh Rate: 60 Hz.
Detection Modes: Z-Cross, Flank & Peak.

DFX-8+

Thickness Gauge Features

Auto: probe zero, probe recognition, and temperature compensation.
Transducer Types: Dual element, Single Contact & Delay line.
Measurement Modes: Includes pulse-echo (P-E), echo-echo (E-E), echo-echo verify (E-EV), pulse-echo coating (PECT), pulse-echo temperature compensation (PETP) & coating only (CT) modes to address a variety of applications.
Large data storage with multiple formats: Alpha numeric grid and sequential w/auto identifiers.
Store up to 64 custom setups.
3 independent gates.
Additional coating gauge feature.

Flaw Detector Features

Pulser: 100 – 400 volt tone burst.
Gain: 0 – 110 dB range.
Filters: Wide, .5, 1, 2, 5, 10 & 15 MHz.
Sizing Toolkits: DAC, AWS, TCG, DGS.
Blanview sunlight viewable QVGA display (320×240 pixels).
P.R.F. – 8Hz to 2kHz, adjustable.
Screen Refresh Rate: 60 Hz.
Detection Modes: Z-Cross, Flank & Peak.
Auto Interface Gate: Immersion testing.
Analog output: 1-10 volts.
Serial Output: For use with remote commander, and B-Scan crawler.
Wave Averaging: Improved resolution and wave display.
