MT6300EH Halogen Trinocular Epi-Fluorescence Biological Microscope

Meiji Techno’s new laboratory grade upright microscopes are the new MT6000 Series Biological with Epi-Fluorescence. The MT6000 Series employs Meiji Techno’s all new ICOS™ (Infinity Corrected Optical System) making the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.

The MT6000 Series microscopes are configured for brightfield and epi-flourescence but can also be outfitted with optional phase contrast, polarized light and darkfield components. System modularity makes purchase and operation very affordable for colleges, universities, researchers and clinics.

Included:
• MT6300EH: Ergonomic Tilting Binocular Epi-Flourescence /Brightfield Compound Microscope – Adjustable vertically from 10 to 50 degrees, Erect Image with Quintuple Nosepiece and 100W Mercury light source and 30W Halogen Koehler illumination
• MA879/05: CHROMA filter-AT-GFP/FITC longpass-19002 mounted in Meiji Filter cube, Exciter(EX) AT480/30x, Dichroic (BS)AT505DC, Emitter(EM)AT5151p (Factory Installed)
• MA880/05: CHROMA filter-AT-TRITC/Cy3 Longpass-19004 mounted Meiji filter cube, Exciter (EX)AT540/25x, Dichroic (BS)AT565DC, Emitter(EM)575lp (Factory Installed)
• MA881/05: CHROMA filter-AT-DAPI/Hoechst/AlexaFlour 350-3900 mounted in Meiji filter cube, Exciter (EX):AT375/28x, Dichroic (BS):AT415DC, Emitter (EM):AT460/50m (Factory Installed)
• MT-FL: Modular six position Epi-Fluorescent illuminator attachment with six positions for filter cubes, Includes one Blue Excitation excitation filter cube, one Green Excitation cube, one U Excitation and 3 empty filter cube positions for MA867
• FL-LHJ: Lamphouse for use with 100W mercury lamp D.C. Arc lamp includes multi-lens achromatic collector and trigger wire
• FL-PWJ: D.C. Power Supply (This power supply is for the 100W Mercury lamp only)
• MA860: ND25 Neutral Density filter, 29.8mm diameter
• MT-RF47: UV Eye protection filter
• MA957: Ergonomic tilting Binocular head-Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D. eyetube). Adjustable vertically from 10 to 50 degrees, Erect Image
• MA958: Photo/video attachment with sliding 80/20 beam-splitter. For use with video or digital camers when MA957 ergonomic head is used
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA844: Plan Semi Apo Objective F10X, N.A.0.40, W.D.1.0 mm, F.N.24
• MA845: Plan Semi Apo Objective F20X, N.A. O.65, W.D. 0.7 mm, F.N.24
• MA847: Plan Semi Apo Objective F40X, oil, N.A. 0.85, W.D. 0.2 mm, F.N.24
• MA848: Plan Semi Apo Objective F100X oil, N.A. 1.25, W.D.0.2mm, F.N.24
• MA700: Immersion oil
• MA910: Abbe condenser, N.A.1.25 with iris diaphragm and dove tail mount
• MA856/05: LB100 Blue Clear filter, 44.0mm diameter, unmounted
• MA918R: Ceramic coated flat-top stage, 190mm x 149mm, with 80mm x 52mm X-Y movement, with right hand drop down coaxial controls
• MA598: Attachable finger assembly for MA918R and MA918L
• MA326: 6V 30W Halogen lamp (Factory Installed)
• MA327: 3 Amp Fuse for Halogen illuminator
• BA005: HBO 100W Mercury lamp (2200 Lumens, life expectancy 200 hours)
• MA809/10: Removable AC Electric cord with plug (115V)
• MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece (Factory installed)
• MA714: Dust Cover for MT6000 Series
• Manual: MT6000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
• Weight: 39 lbs (17.6 kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head type: 475 mm(D) x 477mm (H) x 210mm(W) (11.94kg)( 43.0 lbs.)
• Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (12.64kg)( 46.0 lbs.)
• Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (12kg)(44 lbs.)
• Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (14Kg)(47 lbs.)

Model	Head	Illumination	Eyepieces	Objectives	Stage	Condenser
MT6200H	Binocular	Incident 100W Mercury + Transmitted Koehler 30W halogen	SWH10x FN22	U.Plan 4x, 10x, 40x, 100x oil	Fixed flat-top left or right-handed controls	Abbe NA 1.25 with iris in dovetail mount
MT6200EH	Ergonomic Binocular
MT6300H	Trinocular
MT6300EH	Ergonomic Trinocular

VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo-microscopy; 100% to eyetubes or 80% to phototube & 20% to the eyetube. The optional MA957, Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the MA958, photo/video attachment with sliding 80/20 beam-splitter (Included in MT6300EH).

EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.

OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.

OBJECTIVES
Meiji Techno offers an all new assortment of Infinity Corrected Semi Apochromat objectives for Fluorescence Microscopy and U.Plan Objectives for Brightfield/Darkfield, Phase and Polarized work

STAGE
Ceramic coated flat top stage measures 191mm x 126mm with 100mm x 100mm x-y travel. Ergonomically positioned left or right-handed coaxial drop down controls. Available with motorized components.

CONDENSER
Abbe condenser NA 1.25 with iris in dovetail mount is included. Optional condenders include a Zernike Phase Contrast Condenser NA 1.25 with iris in dovetail mount and darkfield condenser with dovetail mount.

ILLUMINATION
A powerful 6V, 30W halogen lamp provides enhanced image quality and brightness for the observation of specimens. The standard Modular Six Position Epi-fluorescent illuminator employs a 100 watt mercury lamp and standard power supply. The optional Opti-Quip lamphouse includes a fully adjustable power supply that accommodates various Mercury, Xenon.

PRIOR LUMEN 200 ILLUMINATOR
Available upon request, the Prior Lumen 200 is a powerful, cost effective alternative to standard 100 Watt mercury and halogen lamphouses. The combination of Prior’s proprietary 2,000 hour life, 200 watt metal arc lamp and two or three meter liquid light guide provide unrivalled versatility and illumination power. Designed to mount remotely via a two or three meter liquid light guide, the Lumen 200 eliminates heat transfer to the microscope, minimizing thermal drift and aiding image stability in long term experiments.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

MT4300D LED Trinocular Dermatology Microscope

Meiji Techno’s university grade upright microscope line isbiological research microscopes the new and cost-effective MT4000 Series Biological Microscopes. The MT4000 Series employs all new and improved Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.

Includes:
• MT4300D: Trinocular Brightfield Dematology Compound microscope with Bright LED Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA816/05: Trinocular head- Siedentopf type, I.P. adjustment 53mm to 75mm,graduated diopter on left eyetube (23.2mm I.D. eyetube) Inclined at 30 degrees
• MA407 (x 2): KHW10X compensating eyepiece, Field No. 20, Tube O.D. 23.2MM (each)
• MA1022:Plan Apochromat Objective 1.25X, N.A. 0.04, W.D. 3.7 mm, F.N. 24
• MA831: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
• MA832: Plan Semi Apo Objective 10X, N.A. 0.25, W.D. 10.7 mm, F.N. 24
• MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29 mm, F.N. 24
• MA834: Plan Semi Apo Objective 40X, N.A. 0.65, W.D. 0.50 mm, F.N. 24
• MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount
• MA917R: Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm
• MA598: Attachable finger assembly for MA917R and MA917L
• LED/SP-1: 3W LED, 5500K color temperature
• MA929: Spare fuse 0.5A for MT4000 LED Illuminator
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA701: Dust Cover for MT4000
• Manual: MT4000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
• Weight: 29 lbs (8.0kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head type: 390 mm(D) x 410mm (H) x 210mm(W) (8.0kg)( 29.0 lbs)
• Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (8.7Kg)( 30.0 lbs)
• Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (8.4kg)(31 lbs)
• Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (8.9Kg)(33 lbs)

MT5300D LED Trinocular Dermatology Microscope

Meiji Techno’s laboratory grade upright microscope line is the new and cost-effective MT5000 Series Biological Microscopes. The MT5000 Series employs all new and improved U.Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.

Includes:
• MT5300D: Trinocular Brightfield Dermatology Compound microscope with Bright LED Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA816: Trinocular head- Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D. eyetube)
• MA817 (x 2):SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA1022: Plan Apochromat Objective 1.25X, N.A. 0.04, W.D. 3.7 mm, F.N. 24
• MA831: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
• MA832: Plan Semi Apo Objective 10X, N.A. 0.25, W.D. 10.7 mm, F.N. 24
• MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29 mm, F.N. 24
• MA834: Plan Semi Apo Objective 40X, N.A. 0.65, W.D. 0.50 mm, F.N. 24
• MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount
• MA918R:Ceramic coated flat-top stage, 190mm x 140mm, with 80mm x 52mm X-Y movement and right hand drop-down coaxial controls
• MA598: Attachable finger assembly for MA917R and MA917L
• MA809/10: Removable AC Electric cord with plug for 115V models
• LED/SP-1: 3W LED, 5500K color temperature
• MA929: Spare fuse 0.5A for MT5000 LED Illuminator
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA701: Dust Cover for MT5000
• Manual: MT5000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
• Weight: 34 lbs (15.4kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head type: 390 mm(D) x 410mm (H) x 210mm(W) (8.0kg)( 29.0 lbs)
• Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (8.7Kg)( 30.0 lbs)
• Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (8.4kg)(31 lbs)
• Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (8.9Kg)(33 lbs)

Model	Head	Illumination	Eyepieces	Objectives	Stage	Condenser
MT5200D	Binocular	LED Illumination	SWH10x FN22	Plan Apo 1.25x Plan Semi Apo 4x, 10x, 20x, 40x	Ceramic Coated Fixed flat-top left or right-handed controls	Abbe NA 0.90 with swing out top lens
MT5200ED	Ergonomic Binocular
MT5300D	Trinocular
MT5300ED	Ergonomic Trinocular

VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.) The optional MA957, Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the MA958, photo/video attachment with sliding 80/20 beam-splitter (Included in MT5300ED).

EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.

OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.

OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.

STAGE
Ceramic coated standard right-handed or optional left-handed controls, flat top stage 191mm x 140mm with travel: 80mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.

CONDENSER
New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.

ILLUMINATION
Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

MT4300ED LED Ergonomic Trinocular Dermatology Microscope

Meiji Techno’s university grade upright microscope line isbiological research microscopes the new and cost-effective MT4000 Series Biological Microscopes. The MT4000 Series employs all new and improved Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.

Includes:
• MT4300ED: Ergonomic Trinocular Brightfield Dematology Compound microscope with Bright LED Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA957/05: Ergonomic binocular head, inclination adjustable from 10-50 degrees
• MA958: Photo / video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when ma957/05 ergonomic head is used
• MA407 (x 2): KHW10X compensating eyepiece, Field No. 20, Tube O.D. 23.2MM (each)
• MA1022:Plan Apochromat Objective 1.25X, N.A. 0.04, W.D. 3.7 mm, F.N. 24
• MA831: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
• MA832: Plan Semi Apo Objective 10X, N.A. 0.25, W.D. 10.7 mm, F.N. 24
• MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29 mm, F.N. 24
• MA834: Plan Semi Apo Objective 40X, N.A. 0.65, W.D. 0.50 mm, F.N. 24
• MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount
• MA917R: Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm
• MA598: Attachable finger assembly for MA917R and MA917L
• LED/SP-1: 3W LED, 5500K color temperature
• MA929: Spare fuse 0.5A for MT4000 LED Illuminator
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA701: Dust Cover for MT4000
• Manual: MT4000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
• Weight: 29 lbs (8.0kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head type: 390 mm(D) x 410mm (H) x 210mm(W) (8.0kg)( 29.0 lbs)
• Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (8.7Kg)( 30.0 lbs)
• Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (8.4kg)(31 lbs)
• Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (8.9Kg)(33 lbs)

MT5300ED LED Ergonomic Trinocular Dermatology Microscope

Meiji Techno’s laboratory grade upright microscope line is the new and cost-effective MT5000 Series Biological Microscopes. The MT5000 Series employs all new and improved U.Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.

Includes:
• MT5300ED: Ergonomic Trinocular Brightfield Dermatology Compound microscope with Bright LED Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA957: Ergonomic tilting binocular head- adjustable vertically from 10 to 50 degrees (30.mm I.D. eyetube)
• MA958: Photo / video attachment with sliding 80/20 beam-splitter
• MA817 (x 2):SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA1022: Plan Apochromat Objective 1.25X, N.A. 0.04, W.D. 3.7 mm, F.N. 24
• MA831: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
• MA832: Plan Semi Apo Objective 10X, N.A. 0.25, W.D. 10.7 mm, F.N. 24
• MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29 mm, F.N. 24
• MA834: Plan Semi Apo Objective 40X, N.A. 0.65, W.D. 0.50 mm, F.N. 24
• MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount
• MA918R:Ceramic coated flat-top stage, 190mm x 140mm, with 80mm x 52mm X-Y movement and right hand drop-down coaxial controls
• MA598: Attachable finger assembly for MA917R and MA917L
• MA809/10: Removable AC Electric cord with plug for 115V models
• LED/SP-1: 3W LED, 5500K color temperature
• MA929: Spare fuse 0.5A for MT5000 LED Illuminator
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA701: Dust Cover for MT5000
• Manual: MT5000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
• Weight: 34 lbs (15.4kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head type: 390 mm(D) x 410mm (H) x 210mm(W) (8.0kg)( 29.0 lbs)
• Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (8.7Kg)( 30.0 lbs)
• Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (8.4kg)(31 lbs)
• Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (8.9Kg)(33 lbs)

Model	Head	Illumination	Eyepieces	Objectives	Stage	Condenser
MT5200D	Binocular	LED Illumination	SWH10x FN22	Plan Apo 1.25x Plan Semi Apo 4x, 10x, 20x, 40x	Ceramic Coated Fixed flat-top left or right-handed controls	Abbe NA 0.90 with swing out top lens
MT5200ED	Ergonomic Binocular

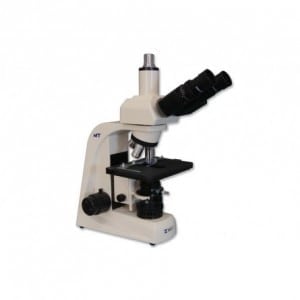

MT5300D	Trinocular
MT5300ED	Ergonomic Trinocular
