Microscopes

Stereo Zoom Microscope

The EMZ8TR-PBH includes the best-selling Meiji EMZ-8TR trinocular zoom stereo microscope body with a 212-mm pole stand and variable-intensity halogen illumination. The primary reason for the EMZ-8TR's success is that all three ports operate simultaneously via the trinocular beam splitter, thereby facilitating on-screen displays (with an appropriate digital camera) while simultaneously viewing through the eyepieces--a useful solution for education, training, and presentation purposes.

The microscope body has a 0.7x-4.5x zoom range, rotates 360º for convenient viewing options, and has a maximum working distance of 104 mm without an auxiliary Barlow lens. Depending on your choice of eyepieces (5x, 10x, 12.5x, 15x, 20x, or 30x), you can achieve magnification ranging from 7x to 135x.

There are dual diopters for convenient focusing of both eyes, and the eyepieces have an interpupillary adjustment range of 54-75 mm to adjust to the distance between your eyes. The base includes a black/white reversible stage plate with two stage clips.

This microscope is also popular for veterinary embryo transfer applications.

These microscopes are manufactured under the strict guidelines established under ISO 9001:2000 Standards. They are sold with Meiji Techno's limited lifetime warranty.

The Meiji line of microscopes offers more than 40 different stands, as well as a number of other options. Call our microscope professionals toll free at (877) 409-3556 for information on configuring a microscope to suit your application.

CLICK HERE to view more stereo microscopes.

Microscope Specifications

Microscope Body: Trinocular + trinocular beam splitter (Optional Binocular), dual diopters, interpupillary adjustment 54-75mm
Objectives: 0.7x - 4.5x zoom range
Zoom Ratio: 6.5:1
Zoom Control: Dual, graduated, bilateral mount
Working Distance: 104 mm
Eyepieces: Choose from 5x, 10x, 12.5x, 15x, 20x, 30x (including eyecups)
Microscope Base: Pole stand, 212 mm high. Includes sliding focus block, reversible white/black stage plate, two stage clips.
Illumination: 10W incident and transmitted variable-intensity halogen lights.
Manual
Dust Cover
Warranty: Manufacturer's Lifetime Limited Warranty. Electrical warranty is 90 days.
Shipping Weight: 22 lbs.

IM7200 Trinocular Inverted Metallurgical Microscope

Product ID: IM7200

Description: The Meiji IM-7200 inverted trinocular metallurgical microscope includes the following:

Objective Lenses: E.Planachromat Infinity Corrected objectives for brightfield observation E5x, E10x, E20x and E50x. Objectives are mounted in an extra large smooth operating, revolving quadruple ball-bearing nosepiece.
Eyepieces: Siedentopf-type trinocular head, inclined at 30° with an 80/20 beamsplitter that can be engaged for photomicroscopy. 100% of the light goes to the eyetubes or 80% to the phototube and 20% to the eyetube. Interpupilliary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided on the left eyetube. Includes paired 10X super widefield high eyepoint eyepieces.
Total Magnification: 50x, 100x, 200x, and 500x.
Specimen Stage: The standard fixed plain stage measures 180mm (x) by 245mm (y). The optional attachable mechanical stage measures 112mm (x) x 71mm (y). The mechanical stage features ergonomically positioned right-handed coaxial drop down controls (MA875).
Focusing: Coaxial low positioned coarse and fine focus controls, graduated to 2 microns per division. Controls are fitted with tension adjustment and safety auto stop. The focus range is 35mm. The movement runs in extra wide precision ball-bearing hardened steel tracks.
Illumination: A powerful Koehler method vertical illuminator with 6 volt 30 watt halogen bulb in an adjustable centering socket provides enhanced image quality of observations and adjustable brightness control.
Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.

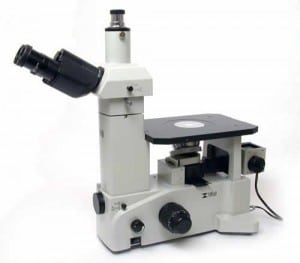

Meiji Techno IM7000 Inverted Metallurgical Microscope

Evaluation of metallurgical specimens is fast and easy with Meiji Techno's IM7000 Inverted Metallograph. The IM7000 delivers an excellent performance-to-cost ratio because it has the features and versatility that one would expect to find in more expensive instruments. The IM7000 has an integrated front mounted camera port with adapters available for 35mm, CCD, CMOS and other cameras.

VIEWING HEADS

The binocular model, the IM7100, incorporates the MA814 Siedentopf-type binocular head while the trinocular model, the IM7200, has the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beamsplitter that can be engaged for photomicroscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm - 75mm. An optional ergonomic binocular head is also available.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard, and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.

OBJECTIVE CHANGER

The smooth-operating, ball bearing, angle mounted quintuple nosepiece provides effortless objective changes.

OBJECTIVES

Meiji Techno offers their newly designed E.Planachromat Infinity Corrected objectives for brightfield observation modes. Infinity tube lens: F = 200mm.

STAGE

The standard fixed plain stage measures 180mm(x) by 245mm(y). The optional attachable mechanical stage measures 112mm(x) x 71mm(y). The mechanical stage features ergonomically positioned right-handed coaxial drop down controls.

ILLUMINATOR

A powerful Koehler method vertical illuminator with 6 volt 30 watt halogen bulb in an adjustable centering socket provides enhanced image quality of observations and adjustable brightness control.

Download Product Brochure Download Product Manual.

IM7000 Series Ordering Information

Model	Head	Type	Eyepieces	Objectives	Stage	Illumination
IM7100	Bino.	Brightfield	SWH 10x FN22	Planachromat E5X Planachromat E10X Planachromat E20X Planachromat E50X	Fixed flat-top 180mm X 245mm	Koehler Vertical 6 volt 30 watt halogen
IM7200	Trino.

IM7000 Series Components & Accessories

Eyepieces
Part Number	Description
MA817	SWH10X Super Widefield High Eyepoint eyepiece, FN22 (standard)
MA818	SWH15X Super Widefield High Eyepoint eyepiece, FN16 (optional)
MA819	SWH20X Super Widefield High Eyepoint eyepiece, FN12 (optional)
MA859	SWH10X-F Super Widefield High Eyepoint focusing eyepiece, FN22 (optional)
Brightfield Objectives - Planachromat - Infinity Corrected (F=200mm)
MA870	Planachromat E5X objective, NA: 0.10, Working Distance = 20.00mm (standard)
MA871	Planachromat E10X objective, NA: 0.25, Working Distance = 7.48mm (standard)
MA872	Planachromat E20X objective, NA: 0.40, Working Distance = 5.20mm (standard)
MA873	Planachromat E50X objective, NA: 0.75, Working Distance = 0.38mm (standard)
MA874	Planachromat E100X objective, NA: 0.90, Working Distance = 0.34mm (optional)
Miscellaneous Parts & Optional Accessories
MA814	Siedentopf Binocular Head
MA816/10	Siedentopf Trinocular Head
MA957/15	Siedentopf type ergonomic binocular head, 10 - 50 degrees adjustable vertical inclination, 30mm I.D. eyetubes (optional)
MA877	C-Mount Adapter for front port IM7000 Series (no lens, port has 0.66x mag factor)
MA475/05	LB100 Blue Filter in 20mm diameter in mount (included)
MA476	G533 Green Filter in 20mm diameter in mount (included)
MA774	ND50 Neutral Density filter in 20mm in mount (included)
MA497	Polarizing Filter, 20mm diameter in mount (included)
MA868	Digital camera adapter for non "C" mount type cameras (52mm O.D. thread), for front camera port (Requires additional DC adapter ring for your specific model camera. Please contact us for the exact DC ring part.)
MA875	Optional Mechanical Stage 112mm(X) by 71mm(Y) with right handed coaxial drop down controls (MA876 required)
MA876	Replacement Metal Insert for Stage
MA809	Replacement AC Powercord 115VAC (USA)
MA326	Spare halogen bulb, 6 volt 30 watt
MA327	Replacement 3A Fuse
MA907	Dust Cover (included)

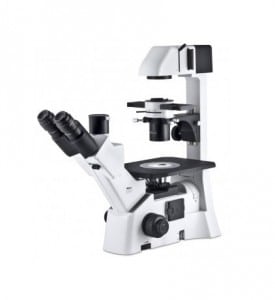

Motic AE31 Trinocular AE30 Series

Product Description

A class leading inverted microscope offering upscale research functions in the routine realm.

The AE30/31 is an inverted microscope for the routine realm, but offers upscale research functions, such as fluorescence and an externally mounted and centrable 30W/6V halogen Koehler illumination. Complementing the uniform illumination is the ELWD 0.30 N.A. condenser with its 72mm working distance for large sample and carriers, which can be adjusted and centered to provide the optimum amount of illumination for each sample. Furthermore, the condenser is equipped with a slider stop for the equipped standard centrable PH 1 and PH 3 Phase slider. An optional LWD 0.50 N.A. condenser [WD=28mm] is available should the need arise.

Driven for applications, the AE30/31 incorporates the Colour Corrected Infinity Optical System [CCIS®] to power system expansions and to produce, along with the CCIS® Plan Achromat inverted objectives, crisp, flat and high contrast images in field flatness up to F.N.22. These images can be viewed for hours upon hours in fatigue free manner thanks to the comfortable 45° observation angle and viewing height of 380mm [400mm – trinocular], which is the ideal height from the laboratory tabletop to the users’ eyepieces. Assisting the angle is the Siedentopf system [50-70mm] for setting the correct interpupillary distance and the adjustable high eye point WF10X eyepiece, which can be adjusted ±5° for individual astigmatism and aligning reticules.

Supporting all these applications and functions is the AE30/31's stable inverted "Y" designed stand. The inverted "Y" provides the necessary stability and weight distribution to handle the attachment of Epi-fluorescence and other accessories. The stand features low position focus mechanisms to alleviate wrist strain while adjusting the focus at 1mm minimum increments throughout the 10mm stroke range. The stage sits at a height of 207mm for rapid sample changes. A universal mechanical stage [tilted adjustment] is available as an option plus a series of Petri dish holders.

Trinocular head Siedentopf type, 45º inclined (light split 100:0/20:80)
Optionally Trinocular head with light split (100:0/0:100)
Widefield high eyepoint eyepieces WFPL10X/22mm with diopter adjustment on both eyepieces, with rubber eyecups
Centering telescope
Side facing quintuple nosepiece
CCIS Plan Achromatic objective PL4X
CCIS Plan Achromatic Phase objective PL PH10X, LWD PL PH20X, LWD PL PH40X
Plain stage, glass and metal inserts
ELWD N.A. 0.30 condenser
Phase slider, centrable PH1, brightfield, PH3
Koehler illumination quartz halogen 6V/30W with external lamp house and intensity control

Download Catalog

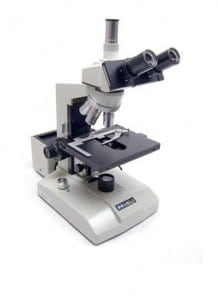

ML5000 Biological Microscopes

The high quality and dependability of the ML Series with the added advantage of an ergonomic reversed quintuple nosepiece for mounting extra objectives. An optional 50W illuminator is also available in this series. The ML5000 series encompasses 12 standard configurations listed below.

VIEWING HEADS
Available with standard binocular heads or trinocular heads for photomicrography, 30° inclined eyetubes with adjustable diopter settings and interpupillary distance, 360° rotatable. EYEPIECESPaired DIN KHW10x with 20mm field of view.

OBJECTIVE CHANGER

Smooth-operating, ball bearing mounted, reverse-angle, quintuple nosepiece.

OBJECTIVES

S. Flat Achromats, SM Planachromats, Planachromats, and Phase Contrast.

STAGE

Flat-top stage: 171mm x 140mm surface with 80mm (X) by 52mm (Y) movement, graduated with vernier readings to 0.1 mm, detachable specimen guide, drop-down right of left-handed controls.

CONDENSERS

Standard models have either an Achromatic NA 1.25 condenser with iris diaphragm and filter tray for brightfield work, simple NA 1.25 slider phase condenser, or an NA 1.25 Zernike phase condenser with filter tray and independently centerable annuli for phase contrast. Cardioid-type NA 1.25 darkfield condenser for high power (100x objective only) darkfield work is optional.

ILLUMINATOR

Variable-intensity Koehler illumination for apertures up to 1.25. Available in 6V 30W (built-in) or 12V 50W (attached lamp house) models.

Download Product Brochure

ML5000 Series Ordering Information

Model	Head	Eyepieces	Objectives	Mech. Stages	Condensers	Illumination
ML5000	Bino.	KHW10X FN 20	SM Semi Plan Brightfield 4X, 10X, S40X, S100X oil	Flat-top	Achromatic Condenser NA 1.25 with blue filter	Koehler 6V 30W halogen
ML5100	Trino.
ML5050	Bino.		BF Semi Plan Brightfield 4X, 10X, S40X, S100X oil
ML5150	Trino.
ML5200	Bino.		Planachromat Brightfield 4X, 10X, S40X, S100X oil
ML5300	Trino.
ML5400	Bino.					Koehler 12V 50W halogen
ML5500	Trino.
ML5855 *	Bino.		Achromat Phase Contrast 10X, S20X, S40X, S100X oil		Zernike type phase condenser, NA 1.25 with green filter	Koehler 6V 30W halogen
ML5955 *	Trino.
ML5870 *	Bino.		BF Semi Plan Phase Contrast 10X, S20X, S40X, S100X oil		Zernike type phase condenser, NA 1.25 with green interference filter 546nm, 29.8mm Ø	Koehler 12V 50W halogen
ML5970 *	Trino.
* Centering telescope is also included

*Components and Accessories for ML5000 Series* *Viewing Heads*
Part Number	Description
MA602	Inclined Binocular Head
MA603	Inclined Trinocular Head
MA657	Binocular Head Erect Image
MA655	Trinocular Head Erect Image
MA403	Inclined Monocular Head
Eyepieces
MA406	DIN HWF10X eyepiece, FN 18 (each)
MA407	DIN KHW10X compensating eyepiece, FN 20 (each)
MA408	DIN HWF15X eyepiece, FN 9 (each)
MA409	DIN HWF20X eyepiece, FN 9 (each)
SM Semi Planachromat Objectives
MA611	4X / NA 0.10 SM Semi Planachromat objective, WD 19.83mm
MA612	5X / NA 0.12 SM Semi Planachromat objective, WD 19.83mm
MA613	10X / NA 0.25 SM Semi Planachromat objective, WD 6.23mm
MA614	20XS / NA 0.40 SM Semi Planachromat objective, spring loaded, WD 3.13mm
MA615	40XS / NA 0.65 SM Semi Planachromat objective, spring loaded, WD 0.43mm
MA616	60XS / NA 0.80 SM Semi Planachromat objective, spring loaded, WD 0.23mm
MA617	100XS / NA 1.25 SM Semi Planachromat objective, spring loaded, oil, WD 0.12mm
BF Semi Planachromat Objectives
MA692	20X / NA 0.40 BF Semi Planachromat objective, WD 6.1mm
MA693	40XS / NA 0.65 BF Semi Planachromat objective, spring loaded, WD 0.43mm
MA694	50XS / NA 0.95 BF Semi Planachromat objective, spring loaded, WD 0.25mm
MA696	100XS / NA 1.25 BF Semi Planachromat objective, spring loaded, oil, WD 0.15mm
MA811	50X / NA 0.95 BF Semi Planachromat objective, oil with iris, WD 0.24mm
MA813	100X / NA 1.25 BF Semi Planachromat objective, oil with iris, WD 0.15mm
Planachromat Objectives
MA432	2.5X / NA 0.08 Planachromat objective
MA622	4X / NA 0.10 Planachromat objective
MA623	10X / NA 0.25 Planachromat objective
MA625	40XS / NA 0.65 Planachromat objective, spring loaded
MA627	100X / NA 1.25 Planachromat objective, spring loaded, oil
Zernike BF Semi Plan Phase Objectives and Components (Set PH-A)
MA695	10X / NA 0.25 BF Plan Phase objective for use with Zernike-type Condenser
MA697	20X / NA 0.40 BF Plan Phase objective for use with Zernike-type Condenser
MA698	40X / NA 0.65 BF Plan Phase objective for use with Zernike-type Condenser
MA699	100X / NA 1.25 BF Plan Phase objective for use with Zernike-type Condenser
MA715	Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris
MA457/1	Extended centering screws for MA715 (each)
MA458	Phase Centering Telescope
MA759	Green Interference Filter, 546nm, 29.8mm diameter
Zernike Achromat Phase Objectives and Components (Set PH-B)
MA448	10X / NA 0.25 Achromat Phase objective for use with Zernike-type Condenser
MA449	20X / NA 0.40 Achromat Phase objective for use with Zernike-type Condenser
MA450	40X / NA 0.65 Achromat Phase objective for use with Zernike-type Condenser
MA451	100X / NA 1.25 Achromat Phase objective for use with Zernike-type Condenser
MA715	Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris
MA457/1	Extended centering screws for MA715 (each)
MA458	Phase Centering Telescope
MA290/05	Green Filter, 29.8mm diameter
Zernike Achromat Phase Objectives and Components (Set PD-A)
MA448	10X / NA 0.25 Achromat Phase objective for use with Zernike-type Condenser
MA449	20X / NA 0.40 Achromat Phase objective for use with Zernike-type Condenser
MA450	40X / NA 0.65 Achromat Phase objective for use with Zernike-type Condenser
MA715	Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris
MA457/1	Extended centering screws for MA715 or MA716 (each)
MA458	Phase Centering Telescope
MA290/05	Green Filter, 29.8mm diameter
Darkfield-Oil Immersion Objectives and Condensers
MA811	BF Semi Planachromat S50X, NA 0.95, oil with iris diaphragm
MA813	100X, NA 1.25 BF Semi Planachromat objective with iris WD 0.15mm
MA430	DIN S.Plan objective 100X, NA 1.25, oil with iris
MA274	Darkfield condenser, 1.2 -1.33 NA, for use with 50x or 100x with iris ONLY
Darkfield Accessories
MA672	Funnel stop for MA617 SM Plan 100X
MA278/05	Darkfield filter (central stop) for use with filter tray, 29.8mm diameter
MA674	Darkfield stop to fit MA661 Achromatic NA 1.25 condenser
Condensers
MA661	Achromatic sub-stage condenser 1.25 NA w/ iris and 30mm filter tray
MA661/674	Achromatic sub-stage condenser 1.25 NA w/ dry darkfield stop
MA715	Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris
MA716	Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris and darkfield stop
MA457/1	Extended centering screws for MA715 or MA716 (each)
Polarizers
MA608	Polarizer set for ML2000 (fits over 44mm lamphouse analyzer to fit viewing head)
MA608/05	Polarizer set for ML5400, ML5500, ML5850, ML5950 (50 watt version) (fits over 37mm lamphouse analyzer to fit viewing head)
MA608/10	Polarizer set for ML5000, ML5100, ML5200, ML5300, ML5800, ML5900 (30 watt version) (fits over 44mm lamphouse analyzer to fit viewing head)
Filters
MA196	ND2 neutral density filter, 29.8mm diameter
MA197	ND8 neutral density filter, 29.8mm diameter
MA289/05	Blue filter, clear, 29.8mm diameter
MA290/05	Green filter, clear, 29.8mm diameter
MA759	Green Interference Filter, 546nm, 29.8mm diameter
MA291	Polarizing Filter, 546nm, 29.8mm diameter
Stages (click here for information on specimen holders)
MA595R	Right Handed Graduated mechanical stage, 30mm X 70mm, drop down controls for ML2000, ML2100, ML2200, ML2300, ML2800 and ML2900
MA595L	Left Handed Graduated mechanical stage, 30mm X 70mm, drop down controls for ML2000, ML2100, ML2200, ML2300, ML2800 and ML2900
MA596R	Right Handed Flat top stage, 78mm X 52mm, drop down controls for ML2400, ML2500, ML2700, ML2850, ML2950 and ML5000
MA596L	Left Handed Flat top stage, 78mm X 52mm, drop down controls for ML2400, ML2500, ML2700, ML2850, ML2950 and ML5000
MA676	Attachable Clinical Specimen Holder for MA596R and MA596L (optional)
MA598	Attachable finger assembly for MA596R and MA596L
Eyepiece Micrometers
MA284	Cross-line reticle, 21mm diameter
MA255	10mm divided into 100 units, 21mm diameter
MA256	5mm divided into 100 units, 21mm diameter
MA283/05	10mm square divided into 100 parts, 1mm square, 21mm diameter
MA540	Cross-line reticle with 0.1mm graduations, 21mm diameter
MA254/05	Walton & Beckett reticle, 21mm diameter
Stage Micrometers
MA285	1mm divided into 100 units, 0.01mm
MA286	0.04" divided into 40 units, 0.001"
Miscellaneous
MA200	Eyeshields for MA407 eyepieces (each)
MA275/05	Spare bulb 12V 50W halogen
MA326	Spare bulb 6V 30W halogen
MA327	Fuse 3A
MA609/05	Carrying case for ML2000 and ML5000 series
MA700	Immersion Oil, 15cc vial
MA701	Dust Cover fits ML2000 and ML5000 series

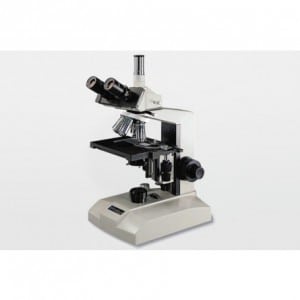

ML2500 Halogen Trinocular Brightfield Biological Microscope

The Meiji Techno ML2500 Trinocular Brightfield Biological Laboratory Series is one of our most rugged fully equipped microscope systems from Japan with a Flat-top Mechanical Stage and forward facing nosepiece. It offers many high performance features and a stable rectangular base for stability. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and 6V 30W Halogen lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. A green monitor lamp is lit to indicate that the lamp is on for easy on/off recognition in any laboratory setting. The low voltage, high intensity, pre-centered halogen lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination and is readily accessible for a quick bulb replacement. The ML2500 Series also features a specially designed Achromatic N.A. 1.25 condenser with iris diaphragm and filter carrier. The die cast metal stand has a chemical resistant finish and is the most rugged, durable finish in the market today. Equipped with low position factory calibrated coaxial coarse and fine focus controls, tension adjustment and a built in stage stop lever to protect the specimen and objectives from accidental damage during use. The ML2500 Series Laboratory Biological Microscope is a versatile and modular system designed to accept a wide variety of optional accessories and is backed by Meiji Techno’s Limited Lifetime Warranty.

Includes:
• ML2500: The ML2500 is a Brightfield Trinocular Laboratory Compound microscope with Koehler Halogen 6V 30W illumination with forward facing quadruple ball bearing nosepiece. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and 6V 30W Halogen lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. The low voltage, high intensity, pre-centered halogen lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination and is readily accessible for a quick bulb replacement. Flat-Top Mechanical stage with 171mm and 140mm rectangular stage with movement of 78mm (X) x 52mm (Y) with drop down Ergonomically placed low positioned coaxial controls and a detachable specimen guide.
• MA603: Inclined Trinocular head, inclined at 30°, rotatable through 360° Trinocular models has a sliding beam splitter that directs 100% of the light to the eyepieces or 80% to the camera and 20% to the eyepieces.
• MA406 qty#2: DIN HWF10X eyepiece, Field No. 18, (each)
• MA611: 4X/0.10 SM Semi Planachromat objective W.D. 19.83mm, 160mm Tube Length
• MA613: 10X/0.25 SM Semi Planachromat Objective W.D. 6.23mm, 160mm Tube Length
• MA615: 40X/0.65 SM Semi Planachromat Objective, spring loaded, W.D. 0.72mm, 160mm Tube Length
• MA617: 100X/1.25 SM Semi Planachromat Objective, spring loaded, W.D. 0.12mm, 160mm Tube Length
• MA661: Achromatic substage condenser 1.25 NA with iris diaphragm and 30mm filter tray
• Stage: Mechanical X-Y stage with attached finger assembly and drop down post, attached stage is 120mm x 140mm rectangular mechanical stage with movements of 75mm (X) x 40mm (Y) and is graduated with Vernier readings to 0.1mm, equipped with low positioned drop down coaxial controls. (Factory Installed)
• Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division. Incorporates tension adjustment and safety Auto-focus stage stop lever
• MA289/05: Blue filter, clear, 29.8mm diameter
• MA676: Attachable clinical specimen holder for MA596R and MA596L
• MA596R: Flat-top stage with clinical specimen holder, 78mm X 52mm, X-Y movement, with drop down coaxial controls (right) (left hand available upon request)
• MA326: Bulb 6V 30W Halogen ( Factory Installed)
• MA327: Fuse 3Amp (Factory Installed)
• MA700: Immersion Oil. 15cc
• MA701: Dust Cover for ML2000
• Manual: Meiji Techno America ML2000 Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
• Weight: 21.0 lbs (9.5 kg)
• Box Size: 22 x 16 x 23 inches
• Footprint: 254mm (D) x 203mm (W)
• Binocular head type: 255 mm(D) x 395 mm (H) x 195mm(W) 21.0 lbs. (9.5kg)
• Trinocular head type: 255 mm(D) x 440 mm (H) x 195mm(W) 22.0 lbs. (10.0kg)

Model	Head	Illumination	Eyepieces	Condensers	Objectives	Stage
ML2200	Binocular	Koehler 6V 30W halogen	KWH10x FN22	Plan Epi BD 5x, 10x, 20x, 50x	SM.Plan Brightfield 4x,10x, S40x, S100x oil	Attached
ML2300	Trinocular					Attached
ML2400	Binocular					Flat-Top
ML2500	Trinocular
ML2600	Binocular				Planachromat Brightfield 4x, 10x, S40x, S100x oil
ML2700	Trinocular				Planachromat Brightfield 4x, 10x, S40x, S100x oil

VIEWING HEADS
Available with standard binocular heads or trinocular heads for photomicrography, 30° inclined eyetubes with adjustable diopter settings and interpupillary distance, 360° rotatable.

EYEPIECES
Paired DIN KHW10x, FN 20.

OBJECTIVES CHANGER
Smooth-operating, ball bearing mounted, quadruple nosepiece.

OBJECTIVES
S. Flat Achromats, SM Planachromats, Planachromats, or Phase Contrast.

STAND
Attached mechanical stage: 120mm x 140mm surface with 75mm (X) by 40mm (Y) movement, graduated with vernier readings to 0.1 mm, drop-down right or left-handed controls. Flat-top stage: 171mm x 140mm surface with 80mm (X) by 52mm (Y) movement, graduated with vernier readings to 0.1 mm, detachable specimen guide, drop-down right of left-handed controls.

CONDENSERS
Standard models have either an Achromatic NA 1.25 condenser with iris diaphragm and filter tray for brightfield work, simple NA 1.25 slider phase condenser, or an NA 1.25 Zernike phase condenser with filter tray and independently centerable annuli for phase contrast. Cardioid-type NA 1.25 darkfield condenser for high power (100x objective only) darkfield work is optional.

ILLUMINATION
Built-in, 6V 30W, variable-intensity Koehler illumination for apertures up to 1.25.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

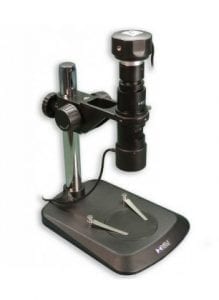

USB400MAC Entry-Level 0.7X-5X Macrozoom System with X-1000U USB 2.0 Camera

USB400MAC is a 0.7X-5.0X Macrozoom direct to video turnkey system with a 5 MP USB 2.0 camera (X-1000U) which can take still shots and live video at 10 fps and basic measurement software. Equipped with a 16 LED array ring illumination with rheostat powered by USB 2.0. The USB400MAC has a 1x objective and a 0.4x trinocular eyepiece on a 205 mm x 273 mm ergonomic 32 mm slope stand with a coarse focus block and a working distance of 105 mm (4”) equipped with basic measurement software for your PC.

USB400MAC is turnkey Macrozoom system that can be easily set-up by connecting to a PC, it comes equipped with a high resolution 5.0 MP CMOS USB 2.0 Camera, large field of view, three dimensional sense and clear image.

Wide applications in educational demonstration (such as biological dissections), and industries like textiles, inspecting metal products, chemicals, plastics, electronics manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing, archeology and many other fields.

Standard LED ring light has more stable light source, safe low voltage, small power dissipation, low calorific value and long operating life. The brightness can be adjusted independently, fit for accurate inspection for high reflectance surface and exterior occasions with lamination limits, displaying more details, which is the best inspection device for industries like electron, five metals (gold, silver, copper, iron and tin) and plastics.

Complete at $1999.00 Canadian
