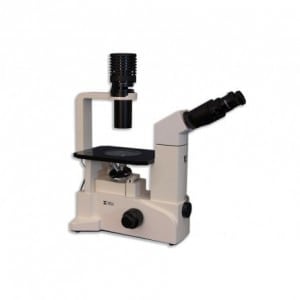

TC-5100 Binocular Inverted Brightfield Biological Microscope

Our latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.

The TC Series is available in brightfield, phase contrast and epi-fluorescence models. The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.

Specifications:

C-5100:Binocular Inverted Biological Compound Microscope, with ∞ Infinity Corrected Optical System, F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply.
MA814: Siedentopf type binocular, inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA821: TC Long Working Distance, LWD Planachromat 10X objective ∞/1.0
MA822: TC Long Working Distance, LWD Planachromat 20X objective ∞/1.0
MA853: TC Condenser, N.A. 0.30, W.D. 73.mm
STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
MA863: Cobalt clear filter in mount in 51mm mount
MA809/10: Removable AC Electric cord with plug for 115V models
MA326: Bulb 6V 30W Halogen (Factory Installed)
MA327: Fuse 3 Amp (Factory Installed)
Manual: TC-5000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

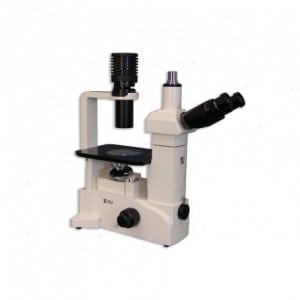

TC-5200 Trinocular Inverted Brightfield Biological Microscope

Our latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.

The TC Series is available in brightfield, phase contrast and epi-fluorescence models. The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.

Specifications:

TC-5200: Trinocular Inverted Biological Compound microscope, ∞Infinity Corrected Optical System, F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
MA816/10: Siedentopf type trinocular head, inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA821: TC Long Working Distance, LWD Planachromat 10X objective ∞/1.0
MA822: TC Long Working Distance, LWD Planachromat 20X objective ∞/1.0
MA853: TC Condenser, N.A. 0.30, W.D. 73.mm
STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
MA863: Cobalt clear filter in mount in 51mm mount
MA809/10: Removable AC Electric cord with plug for 115V models
MA326: Bulb 6V 30W Halogen (Factory Installed)
MA327: Fuse 3 Amp (Factory Installed)
Manual: TC-5000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

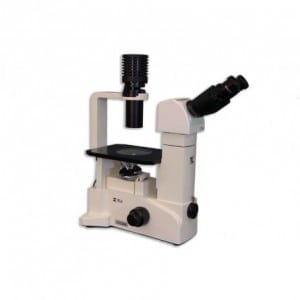

TC-5100E Ergonomic Binocular Inverted Brightfield Biological Microscope

Our latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.

The TC Series is available in brightfield, phase contrast and epi-fluorescence models. The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.

Specifications:

TC-5100E: Ergonomic Binocular Inverted Biological Compound microscope, eyepiece inclination adjustable vertically from 10° to 50° degrees, ∞ Infinity Corrected Optical System F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
MA957/15: Ergonomic Siedentopf type binocular head, eyepiece inclination adjustable vertically from 10° to 50° degrees, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA821: TC Long Working Distance, LWD Planachromat 10X objective ∞/1.0
MA822: TC Long Working Distance, LWD Planachromat 20X objective ∞/1.0
MA853: TC Condenser, N.A. 0.30, W.D. 73.mm
STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
MA863: Cobalt clear filter in mount in 51mm mount
MA809/10: Removable AC Electric cord with plug for 115V models
MA326: Bulb 6V 30W Halogen (Factory Installed)
MA327: Fuse 3 Amp (Factory Installed)
Manual: TC-5000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

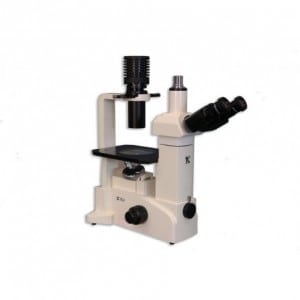

TC-5400 Trinocular Inverted Brightfield/Phase Contrast Biological Microscope

Our latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.

The TC Series is available in brightfield, phase contrast and epi-fluorescence models. The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.

Includes:
• TC-5400: Trinocular Inverted Phase Contrast/Brightfield Compound microscope, with ∞Infinity Corrected Optical System, F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA816/10: Siedentopf type trinocular head, inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA826: TC Long Working Distance LWD Planachromat Phase 10X objective ∞/1.0
• MA827: TC Long Working Distance LWD Planachromat Phase 20X objective ∞/1.0
• MA853: TC Extra Long Working Distance ELWD Condenser, N.A. 0.30, W.D. 73.0mm
• MA861: Green interference filter in 51mm mount (546mm)
• MA863: Cobalt clear filter in mount in 51mm mount
• STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
• MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
• MA855: Phase slider
• MA458/05: Centering telescope (O.D. = 30.0)
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA326: Bulb 6V 30W Halogen (Factory Installed)
• MA327: Fuse 3 Amp (Factory Installed)
• Manual: TC-5000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
• Weight: 23 lbs (10.5 kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 364mm (D) x 220mm (W)
• Binocular head type: 485 mm(D) x 411 mm(H) x 220 mm(W) (8.0kg)( 29.0 lbs)
• Trinocular head type: 485 mm(D) x 440 mm(H) x 2210 mm(W) (8.5Kg)(31.0 lbs)
• Binocular Ergonomic head type: 485 mm(D) x 440mm(H) x 2210mm(W) (8.5Kg)(31.0 lbs)

Model	Head	Illumination	Eyepieces	Objectives	Stage	Condenser
TC-5100 Brightfield	Binocular	Koehler w/o iris 6V 30W halogen	SWH10x FN22	Quintuple Nosepiece w/LWD 10X & LWD 20X	Plain Fixed Stage 180mm X 247mm	TC Condenser WD 73mm NA 0.30orTC Condenser2 WD 20.5mm NA 0.55
TC-5100E Brightfield	Ergonomic Binocular
TC-5200 Brightfield	Trinocular
TC-5300 Phase Contrast	Binocular	Koehler w/o iris with phase slider 6V 30W halogenKoehler 6V 30W halogen
TC-5300E Phase Contrast	Ergonomic Binocular
TC-5400 Phase Contrast	Trinocular
TC-5500 Epi-Fluorescent	Binocular	100W Mercury + Koehler w/o iris 6V 30W halogen		Quintuple Nosepiece TC Planachromat F10X, F20X		TC Condenser WD 73mm NA 0.30 or TC Condenser2 WD 20.5mm NA 0.55

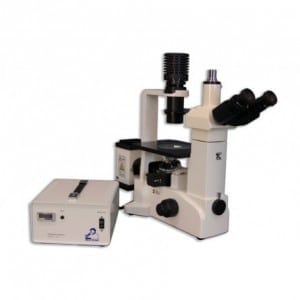

TC-5600 Epi-Fluorescent	Trinocular	100W Mercury + Koehler w/o iris 6V 30W halogen		Quintuple Nosepiece TC Planachromat F10X, F20X

VIEWING HEADS
Binocular models, the TC5100, TC5300 and TC5500, incorporate the MA814 Siedentopf-type binocular head while the trinocular models, the TC5200, TC5400 and TC5600 have the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beamsplitter that can be engaged for photo-microscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm – 75mm.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.

OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.

OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.

STAGE
The optional attachable mechanical stage measures 112mm(X) x 72mm(Y). It has ergonomically positioned right-handed coaxial drop down controls. It also accepts the following optional accessory plates: 35mm, 55mm, 65mm, Petrie Dish Holders, 96-well Terasaki Plate Holder, 1″ X 3″ glass slide holder, Hemacytometer holder.Slide, chamber, and petri dish holding plates of various sizes are available separately.

CONDENSER
The standard condenser has a working distance of 73mm.

ILLUMINATION
A powerful 6 volt 30 watt halogen bulb with pre-centered socket provides enhanced image quality and brightness for the observation of specimens.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

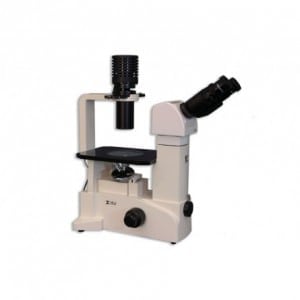

TC-5300E Ergonomic Binocular Inverted Brightfield/Phase Contrast Biological Microscope

Our latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.

The TC Series is available in brightfield, phase contrast and epi-fluorescence models. The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.

Includes:
• TC-5300E: Ergonomic Binocular Inverted Phase Conrast/Brightfield Compound microscope, ∞ Infinity Corrected Optical System F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA957/15: Ergonomic Siedentopf type binocular head, eyepiece inclination adjustable vertically from 10° to 50° degrees, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA826: TC Long Working Distance LWD Planachromat Phase 10X objective ∞/1.0
• MA827: TC Long Working Distance LWD Planachromat Phase 20X objective ∞/1.0
• MA853: TC Extra Long Working Distance ELWD Condenser, N.A. 0.30, W.D. 73.0mm
• MA861: Green interference filter in 51mm mount (546mm)
• MA863: Cobalt clear filter in mount in 51mm mount
• STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
• MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
• MA855: Phase slider
• MA458/05: Centering telescope (O.D. = 30.0)
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA326: Bulb 6V 30W Halogen (Factory Installed)
• MA327: Fuse 3 Amp (Factory Installed)
• Manual: TC-5000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card

Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
• Weight: 23 lbs (10.5 kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 364mm (D) x 220mm (W)
• Binocular head type: 485 mm(D) x 411 mm(H) x 220 mm(W) (8.0kg)( 29.0 lbs)
• Trinocular head type: 485 mm(D) x 440 mm(H) x 2210 mm(W) (8.5Kg)(31.0 lbs)
• Binocular Ergonomic head type: 485 mm(D) x 440mm(H) x 2210mm(W) (8.5Kg)(31.0 lbs)

Model	Head	Illumination	Eyepieces	Objectives	Stage	Condenser
TC-5100 Brightfield	Binocular	Koehler w/o iris 6V 30W halogen	SWH10x FN22	Quintuple Nosepiece w/LWD 10X & LWD 20X	Plain Fixed Stage 180mm X 247mm	TC Condenser WD 73mm NA 0.30orTC Condenser2 WD 20.5mm NA 0.55
TC-5100E Brightfield	Ergonomic Binocular
TC-5200 Brightfield	Trinocular
TC-5300 Phase Contrast	Binocular	Koehler w/o iris with phase slider 6V 30W halogenKoehler 6V 30W halogen
TC-5300E Phase Contrast	Ergonomic Binocular
TC-5400 Phase Contrast	Trinocular
TC-5500 Epi-Fluorescent	Binocular	100W Mercury + Koehler w/o iris 6V 30W halogen		Quintuple Nosepiece TC Planachromat F10X, F20X		TC Condenser WD 73mm NA 0.30 or TC Condenser2 WD 20.5mm NA 0.55
TC-5600 Epi-Fluorescent	Trinocular	100W Mercury + Koehler w/o iris 6V 30W halogen		Quintuple Nosepiece TC Planachromat F10X, F20X
